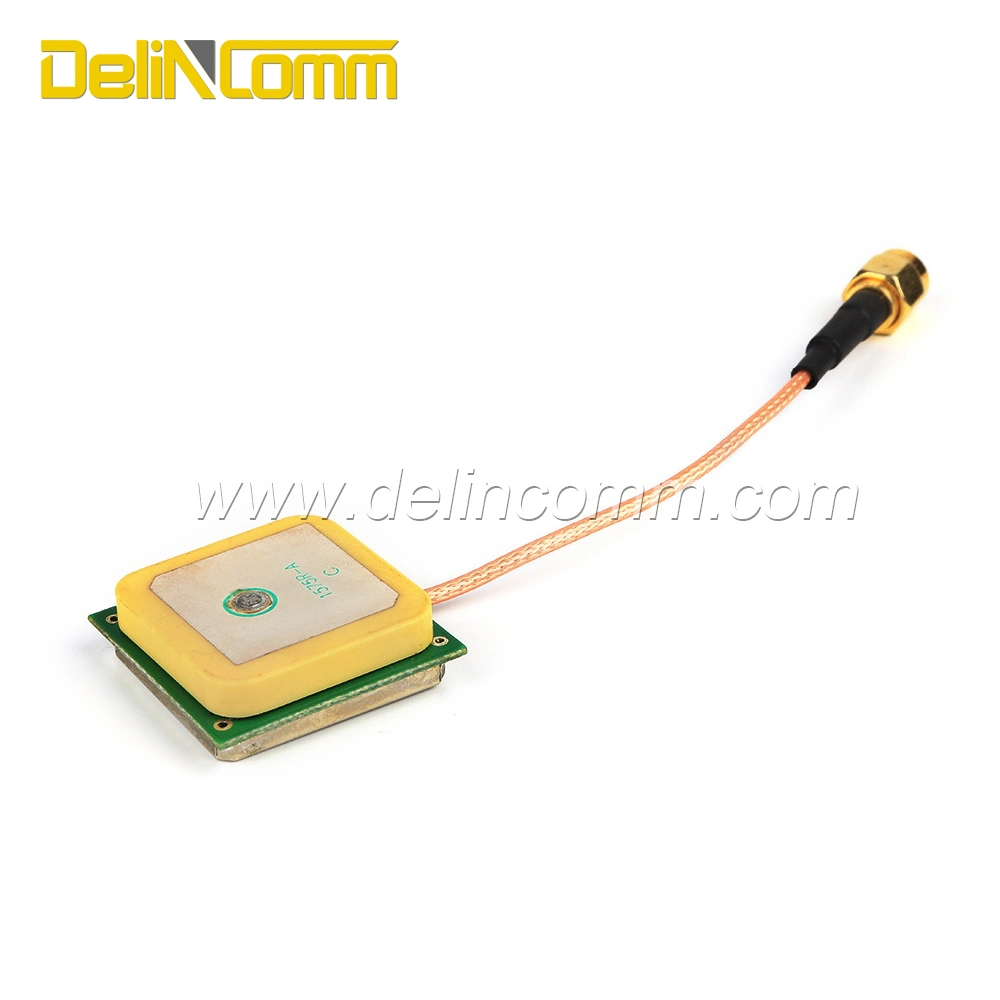

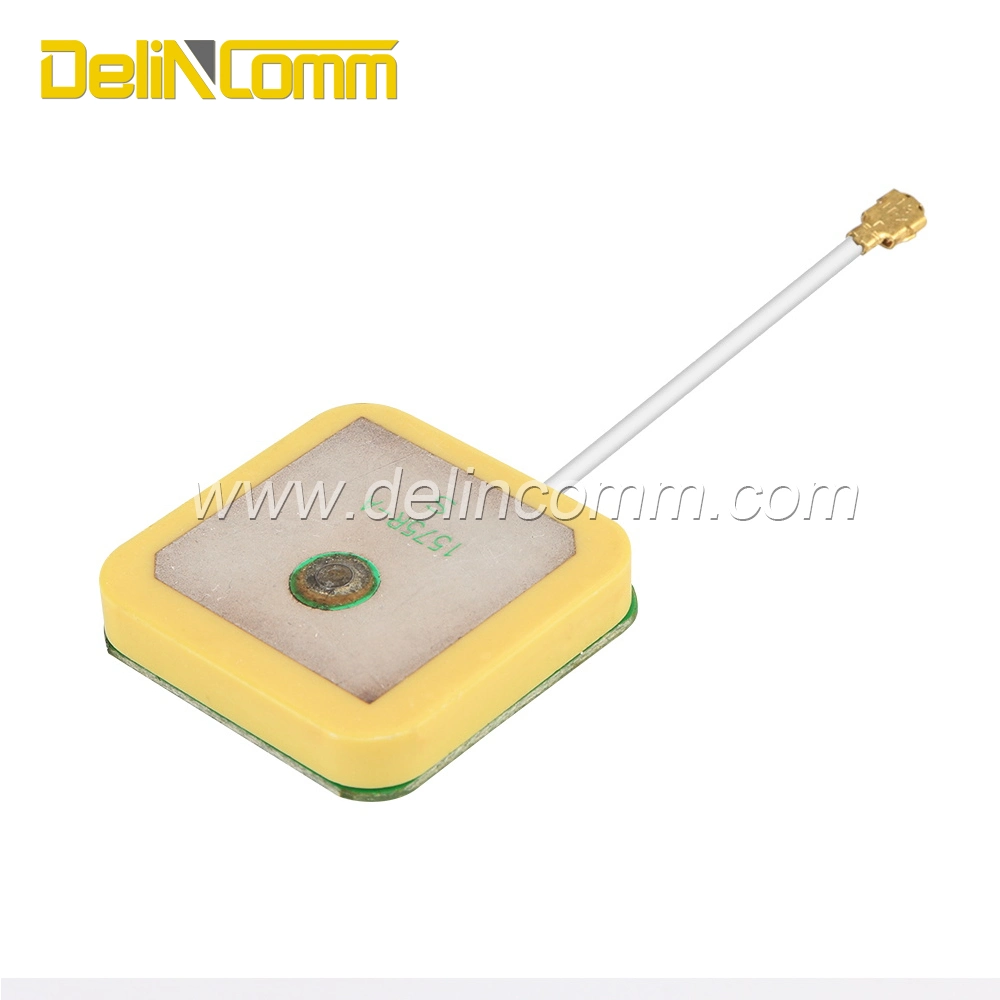

Ceramic Antenna GPS&Glonass Internal Antenna GPS&Glonass Antenna

    The GPS&Glonass internal antenna consists of ceramic antenna, low noise amplifier and feed cable. It has the following characteristics:
1. Low voltage: 2.7~3.3V
2. Low noise coefficient:< 2
3. Gain: 20 ± 2dB

Mechanical Specifications
Size(mm)25×25×4.7mmMounting--
Weight(g)25ConnectorIPEX
Color-- CableRF1.13 - 80mm
Operating Temp. -45ºC~+85ºC Operating Humidity 0%~95%
Storage Temp. -40ºC~+85ºC Storage Humidity 0%~95%

Technical Characteristics
Ceramic Antenna
Center Frequency 1575.42±2 MHz&1601±2 MHz
Tape Width10MHz
Gain (maximum direction)0dB
Gain (10 degrees elevation)-5dB
PolarizationRHCP
Impedance 50Ω
(the above indicator test is based on 25x25mm ground)

Low Noise Amplifier
Center Frequency 1575.42 + 2 MHz&1601 + 2 MHz
Gain20dB±2dB
Noise Figure≤2.0dB
V.S.W.R.≤2.0dB
Working Voltage2.7V
Impedance 50Ω
