Custom designed Nfc RFID reader module with super mini size and 2 RFID antenna ports, ideal for parking lot readers

CH3X(S)(Z)-X is a NFC & 13.56MHz contactless smart card reader and writer module. It supports almost full range of contactless smart cards technologies, as ISO14443A/B,ISO15693 as well as NFC ISO18092 P2P.Because of the encryption by DES/3DES/AES 128-bit algorithm , the module fits very well the high security level applicati

Featured Products

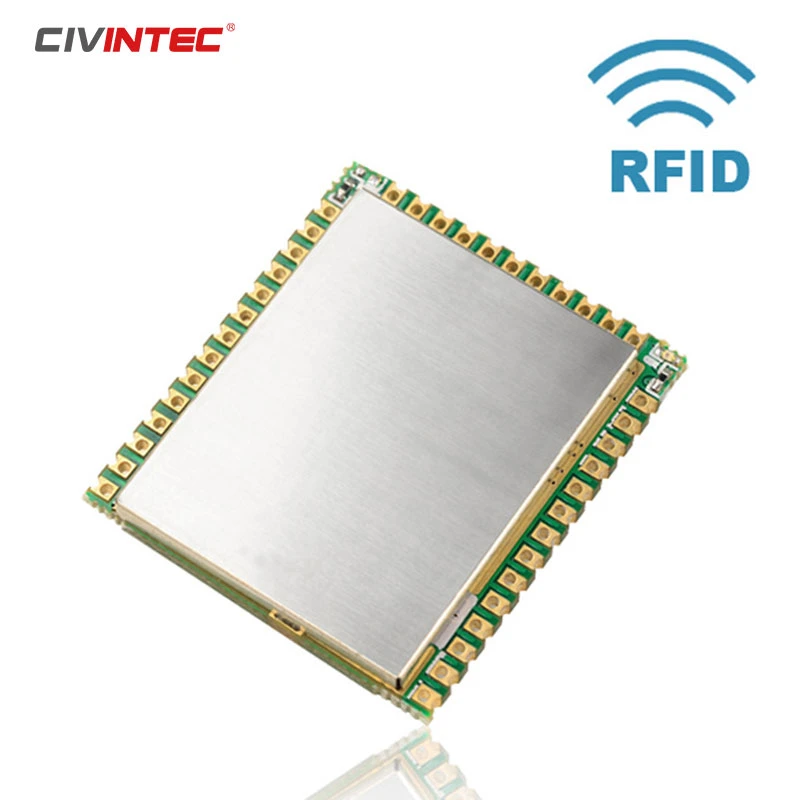

Custom Designed Nfc RFID Reader Module with Ultra Mini Size and 2 RFID Antenna Ports Ideal for Car Parking Reader
Custom Designed Nfc RFID Reader Module with Ultra Mini Size and 2 RFID Antenna Ports Ideal for Car Parking Reader

CH3X(S)(Z)-X is a NFC & 13.56MHz contactless smart card reader and writer module. It supports almost full range of contactless smart cards technologies, as ISO14443A/B,ISO15693 as well as NFC ISO18092 P2P.

Because of the encryption by DES/3DES/AES 128-bit algorithm , the module fits very well the high security level application such as E-payment, kiosk, vending machine, access control, parking etc. It fully supports Mifare classic,Mifare Plus, DESFire EV1, ultralight C technologies. Further it is with 2 SAM socket that supports ISO7816 to increase the security level and to meet multi-application requirement.

The module is with ultra low power consumption performance and extremely mini size, multi interface, so it especially meets the requirement of handheld reader demands. To fit some special application, the module is with the ability to work with two 13.56MHz antennas.

Custom Designed Nfc RFID Reader Module with Ultra Mini Size and 2 RFID Antenna Ports Ideal for Car Parking Reader



›› Full feature support of ISO14443A/B, ISO15693, Mifare, DesFire EV1, Mifare Plus,

     Ultralight C and read FeliCa

›› Support ISO18092 NFC P2P

›› 2 optional embedded SAM slots for advanced security,expandable on request

›› Mini Size Design 32*28*3.5mm and light weight with Stamp Hole

›› Extreme Low power consumption with deep sleep mode

›› Multi-interface on one board -- USB, TTL, SPI, ABA, Clock&Data

›› Compact external 1-2 Antenna, expandable on request

›› Development kit with all necessary resources under Android,Linux and Windows (C++, JAVA, .NET) for short time to market





Model

CH3X(S)(Z)-X

Dimension & Weight

32*28*3.5mm (L*W*H); 400g

Power Supply

3.3V or 5V DC supply

Power Consumption

0.45mA in ultra lower power mode

NFC

NFC forum tags and mobile phone from different supplier

Smart Card Technology

13.56MHz ISO14443A/B, ISO15693, FeliCa

Contact Standard

Two SAM Slots, ISO7816, T=0, T=1

Antenna

Single/Dual External Antennas in 55*50mm, 30*30mm

Indicator

Controllable 2 LED and 1 Buzzer

Hardware Interface

USB, TTL, SPI, Wiegand, ABA, C&D

Reading distance

5-8cm (depending on Transponders and antennas)

Operating System

Android, Linux, Windows(7/8)


Custom Designed Nfc RFID Reader Module with Ultra Mini Size and 2 RFID Antenna Ports Ideal for Car Parking Reader
With a powerful combination of ultra low power consumption, size and functional requirements, CH31 family is 13.56MHz & NFC reader writer core module for e-Payment, e-Ticket & lower power mobile applications. CH31 series is specially designed for contactless smart card and NFC payment as prepaid card, e-purses for integration into kiosk, POS terminals, parking, ticket and vending machine to enable secure and cashless payment session (deduction, refund, top-up etc.).It's  an ideal solution designed for portable devices integration, including tablet, handheld terminal, POS and portable printer.  It's one of the smallest and thinnest OEM reader module with ultra low power consumption in the world to achieve the limited space integration requirement and battery power issues on portable devices.


--POS, Kiosk, Payment terminals, Vending

   machines

--E-ticket, Parking meters

--Handheld readers

--Gate and turnstiles, Parking, locks

--Personal computers

--Restaurant tables
