Well-stocked Outdoor Harsh Environment Fiber Optic PTLC Cable Assemblies Waterproof Cables

Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof CableThe harsh environment PT/LC plug assemblies and mating receptacles leverage the proven MIL -spc 26482 connector systerm to providen an envirinmental seal and mechanical protection for 2 fiber duplex LC style connections . Aviable wit

Featured Products

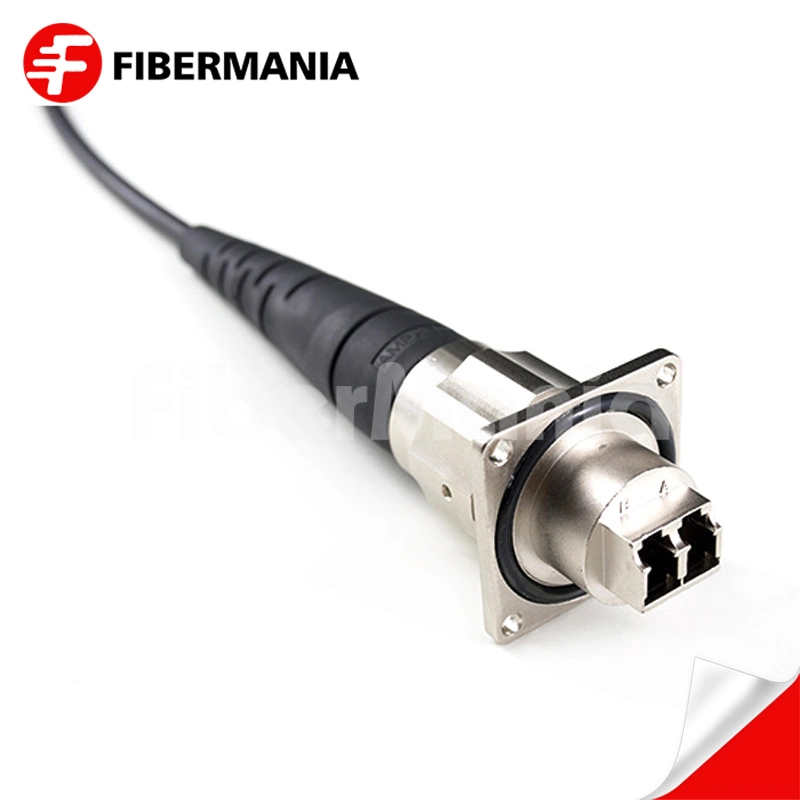

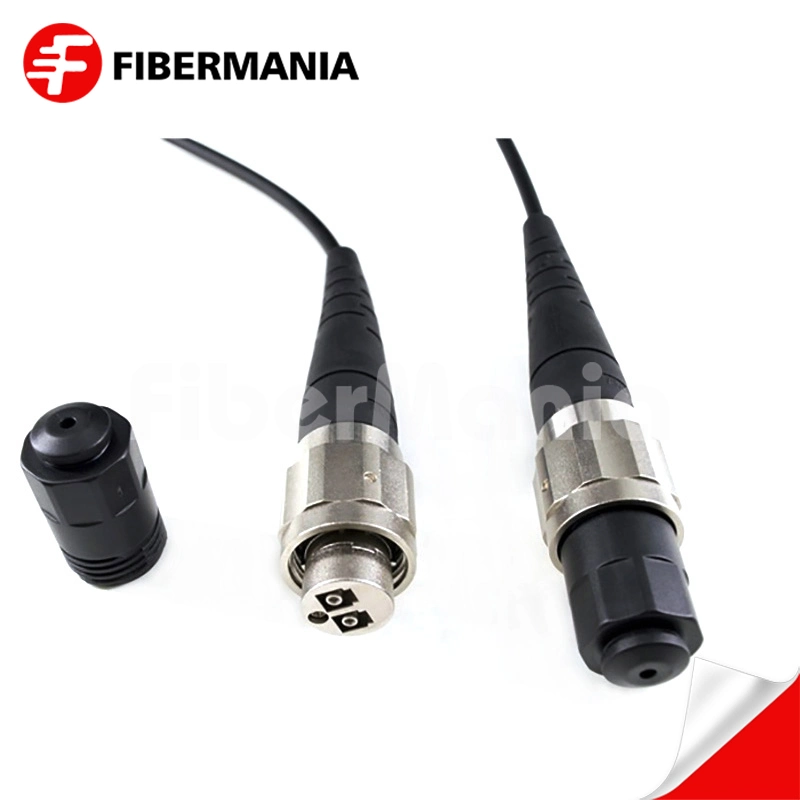

Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable

The harsh environment PT/LC plug assemblies and mating receptacles leverage the proven MIL -spc 26482 connector systerm to providen an envirinmental seal and mechanical protection for 2 fiber duplex LC style connections .

Aviable with either a quick mate bayonet or anti-vibration threaded coupling .The PTLC provides a simple and reliable sealed connection .Factory terminated PTLC plug assemblies , invarious length , can be provided as jumpers to connect with most industry  standard optical connectors , allowing hassle free interrgration with existing hardware.


Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable
  • Armored tube for better protection
  • Open bulkhead for easier access to SFP
  • Positive mechanical feedback to operator when fully mated
  • Robust bayonet locking for easy, fast and secure mating
  • Available for singlemode and multimode
  • Water proof, dust proof and corrosion resistant
  • Blind mate ans scoop proof interface
  • Thread  or bayonet mating style


Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable

  • Outdoor Fiber Optic Transmission
  • CATV Networks
  • LAN Testing/Measurement Instruments
  • FTTA, FTTP, FTTX, WIMAX
    Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable
    • Insertion loss: ≤0.3dB
    • Repeatable: ≤0.2dB
    • Mechanical life: 500 cycles
    • Adapter footprint : 36mm x 36mm
    • Working temperature: -40 ~ +70ºC
    • Storage temperature: -40 ~ +70ºC
    • Operating temperature: -10 ~ +50ºC
    • Protection level: IP67
    • Tensile data: Between junction and fiber cable ≥ 180N
    • Outer shell inflaming retarding: UL 94V-0
    • RoHS compliant
    Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable

    Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable
    Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable
    Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable
    Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable
    Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable
    Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable
    Fully Stocked Outdoor Harsh Environment Fiber Optical PTLC Cable Assemblies Waterproof Cable

    Q1: What is the warranty of FiberMania's fiber patch cord?
    A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of
    five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

    Q2: Is it possible to customize our brand information on your fiber cable?
    A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

    Q3: Can you do 3D interferometer test?
    A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

    Q4: What is your MOQ of your products?
    A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may
    consider stock the bulk cable with us for your urgent order production.

    Q5: Are free samples available from you?
    A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under
    50 US dollars.

    Q6: Do you accept OEM and ODM orders?
    A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and
    carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open
    the new tooling for your specific project.
