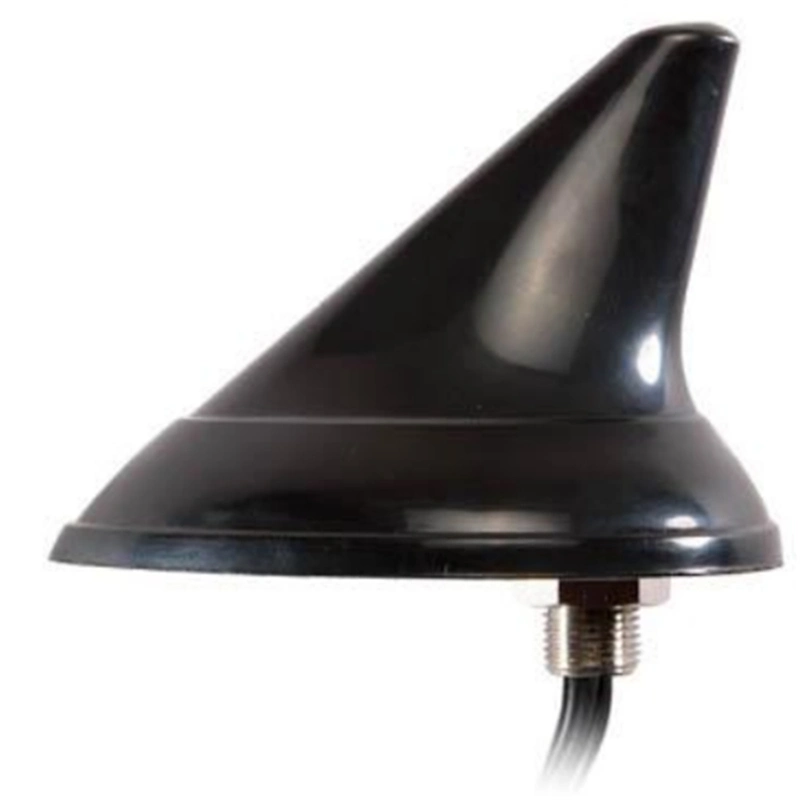

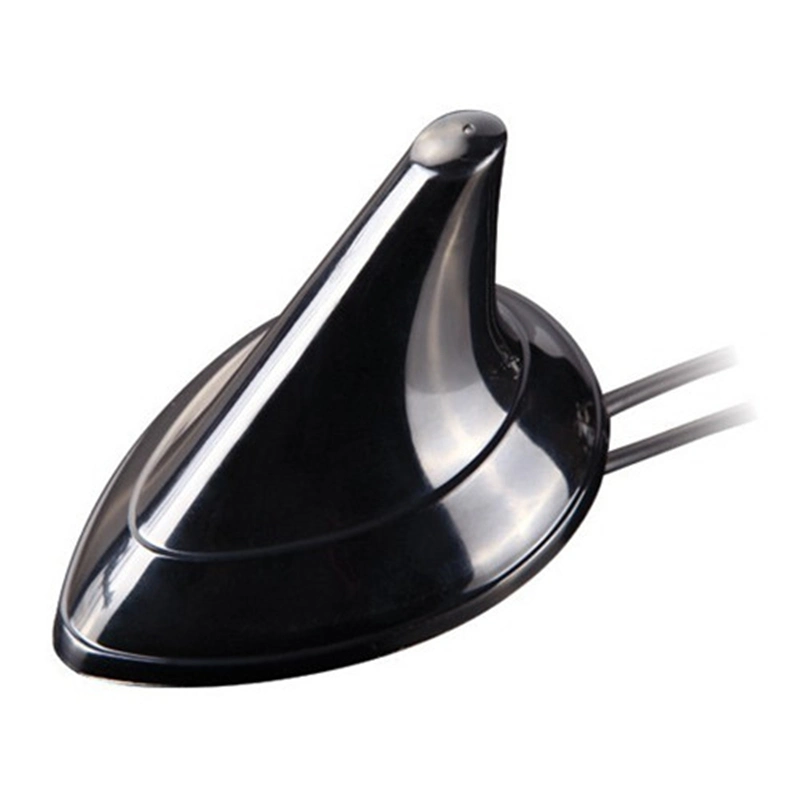

GPS+GSM+Am/FM Combo Antenna with SMA Male Connector
ItemSpecifications
GPS AntennaDielectric AntennaCenter Frequency1575.42±1MHz
Band WidthCF±5MHz
PolarizationRHCP
Gain2dBic(Zenith)
V.S.W.R<1.5
Impendance50Ω
Axial Ratio3dB(max)
LNAGain28±2dB
Noise Figure<1.5
Ex-band Attenuation12dB@CF+50MHz/16dB@CF-50MHz
V.S.W.R<2.0
Supply Voltage2.2~5V DC
Current Consumption5~15mA
GSM AntennaFrequency Range824~960MHz/1710~2170MHz
V.S.W.R<2.5
PolarizationLinear
Gain2dBi
Impendance50Ω
FM/AM AntennaFrequency Range520~1629KHz/76~108MHz
V.S.W.R<2.5
PolarizationLinear
Gain20/12dBi
Impendance50Ω
Supply Voltage12V DC
EnvironmentalOperating Temperature-40ºC~+85ºC
Relative HumidityUp to 95%
Ingress ProtectionIP65~IP66 (exclude cable outlet)
Vibration10 to 55Hz with 1.5mm amplitude 2hours
Environmentally FriendlyROHS Compliant


FAQ
Q: Can I get one sample?
A: Yes, sample is available.

Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.

Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.

Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q: What's the payment term?
A:T/T, Paypal, western union etc.

Q:May I visit your company?
A: Sure, welcome any time.

Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
