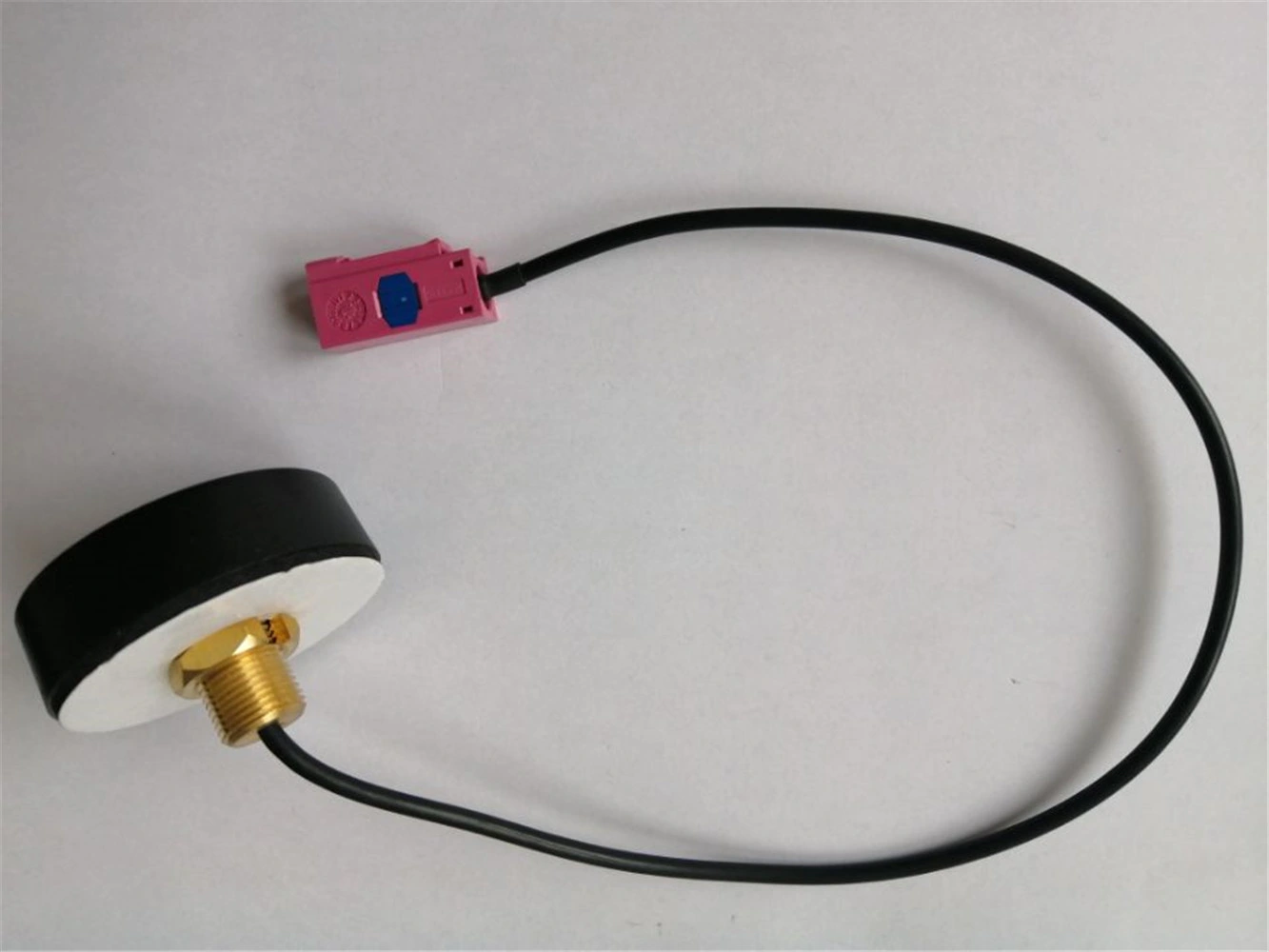

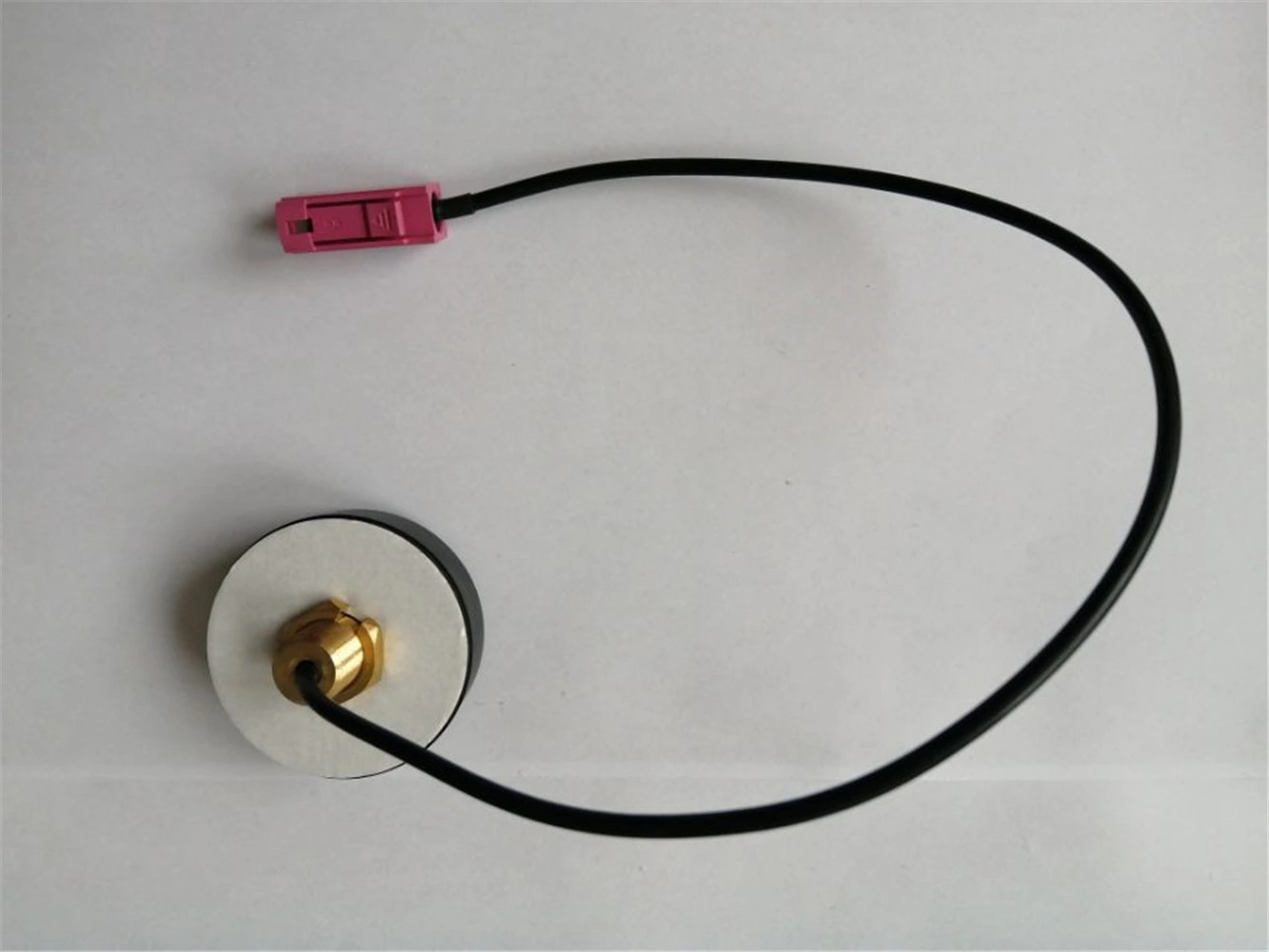

GPS/Glonass Active External Antenna with Fakra H Pink Connector

ApplicationsAutomobile Navigation,Logistics Positioning and etc.FeaturesHigh stability,Linearity,Consistency,High gain,outside-band interference suppression,Low Noise Figure GPS/Glonass  AntennaGL-DY003Electrical IndexFrequency-MHz1575.42±1/1601-1610VSWR<1.5Nominal Impedance-Ω50PolarizationRHCP,Axial Ra

Featured Products

GPS/Glonass Active External Antenna with Fakra H Pink Connector

GPS/Glonass Active External Antenna with Fakra H Pink Connector
GPS/Glonass Active External Antenna with Fakra H Pink Connector
GPS/Glonass Active External Antenna with Fakra H Pink Connector
GPS/Glonass Active External Antenna with Fakra H Pink Connector


Applications

Automobile Navigation,
Logistics Positioning and etc.


Features

High stability,
Linearity,Consistency,
High gain,
outside-band interference suppression,
Low Noise Figure



GPS/Glonass  Antenna
GL-DY003
Electrical Index
Frequency-MHz1575.42±1/1601-1610
VSWR<1.5
Nominal Impedance-Ω50
PolarizationRHCP,
Axial Ratio3dB(max)
LNA Gain28±2dB
Noise Figure<1.5
Supply Voltage3-5V DC
Current Consumption5-15mA
Mechanical Index
Cable Length -mmRG174,300
ConnectorFakra or SMA male
Antenna Dimension-mm46.6*14.5
Installation WayScrew
Ingress ProtectionIP65~IP67(exclude cable outlet)
Vibration10 to 55Hz with 1.5mm amplitude 2hours
Environmentally FriendlyROHS Compliant
Temperature-ºC-40~+85
Humidity-%5~95

FAQ
Q: Can I get one sample?
A: Yes, sample is available.

Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.

Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.

Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q: What's the payment term?
A:T/T, Paypal, western union etc.

Q:May I visit your company?
A: Sure, welcome any time.

Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
