PRODUCT DESCRIPTION
CORE TECHNOLOGY
*High Performance measurement engine
*Lightweight appearance design
*Radio Network data communication
*Super configuration 8GB of storage
*Intelligent Application
*Android controller Ihand30
*Professional Hi-survey measurement Software

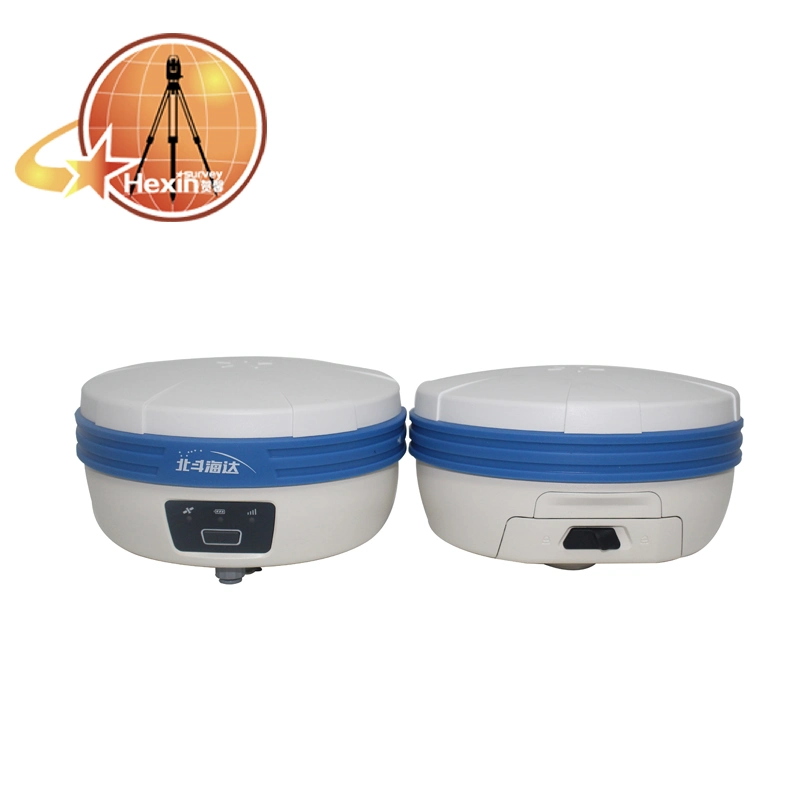

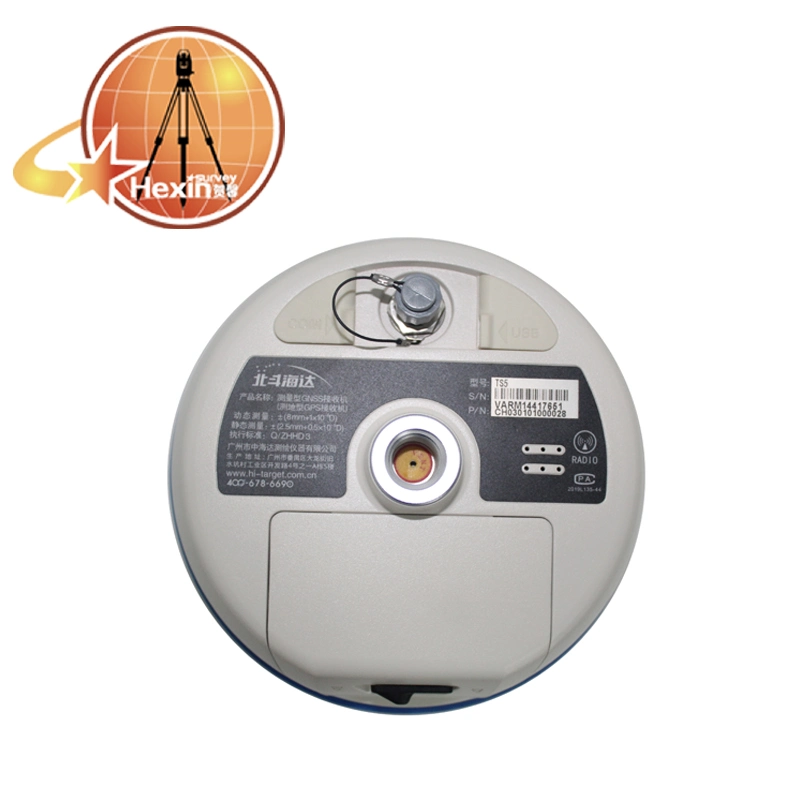

PRODUCT SHOW
PRODUT SPECIFICATION
| Satellites Signals Tracked Simultaneously | |
| Channel | 400+ |
| GPS | L1, L2, L5 |
| Glonass | L1, L2 |
| SBAS | L1 |
| Galileo | E1, E5A, E5B |
| BeiDou | B1, B2, B3 |
| QZSS | L1, L2, L5 |
| High- precision static Gnss Surveying | |
| Horizontal | 2.5mm+0.5ppm RMS |
| Vertical | 5mm+0.5ppm RMS |
| Real time Kinematic (PPK/Stop & Go)GNSS Surveying | |
| Single Base | |
| Horizontal | 8mm+1ppm RMS |
| Vertical | 15mm+1ppm RMS |
| Network RTK | |
| Horizontal | 8mm+0.5ppm RMS |
| Vertical | 15mm+0.5ppm RMS |
| initialization time | Typically 2-10 seconds |
| initialization reliablity | Typically>99.9% |
| Tilt Survey | |
| Electronic Bubbles | |
| Network Communication | |
| Bluetooth 4.0/2.1+EDR, 2.4GHz 4G cellular mobile network (TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM) WIFI frequency is 2.4GHz, supports 802.11b/g/n protocol | |
| Hi-Target internal UHF Radio(Standard) | |
| Frequency | 410-470MHz |
| transmitting power | 1w,2w,4w adjustable |
| Channels | 116 (16 adjustable) |
| Supports multiple protocols: Hi-Target, Trimtalk450S, trimmarkIII, Transeot, satel-3AS, etc | |
| working range | 3-5km typical, 5-8km optimal |
| Hi-Target external UHF Radio(Standdard) | |
| Frequency | 450-470MHz |
| transmitting power | 5w-25w adjustable |
| Channels | 8 |
| Supports multiple protocols:Trimtalk450S, trimmarkIII, Transeot | |
| External Power | |
| 6-28V DC external power input (5-pin port) with over-charge protection | |
| Physical | |
| Power consumption | 4.2W |
| Dimensions(W*H) | 164mm*83.5mm |
| Weight | ≤1.4kg (includes battery) |
| Data Storage | 8G internal storage |
| Environment | |
| Operating temperature | -45ºC~+75ºC |
| Storage temperature | -55ºC~+85ºC |
| Humidity | 100%, considering |
| Water/ Dustproof | IP67 |
| Shock & Vibration | designed to survive a 2m natural fall onto concrete |
| Control Panel | |
| Physical button ×1 | |
| LED lamp: satellite, signal, power | |
| Internal Battery | |
| 5000mAh lithium-ion rechargeable and removeable battery RTK rover (UHF/Cellular) for 10 hours | |
| Physical | |
| I/O interface | |
| Mini USB port | ×1 |
| TNC antenna connector | ×1 |
| DC Power input (5-pin) | ×1 |
| SIM card slot | ×1 |
| Data Formats | |
| Output rate | 1-20Hz |
| Static data format | GNS, Rinex |
| Network model | VRS, supports NTRIP protocol |
| CMR&RTCM | CMR, RTCM, 2.X, RTCM3.0, RTCM3.2 |
| Navigation outputs ASCII | NMEA-0183 |
Related Products
PACKING & SHIPPING
PAYMENT
COMPANY INFORMETION
Shanghai Hexin Survey Instrument Co., LTD has 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in MainlandChina. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
Q:How to turn off voice broadcast of receiver?
A: a. Enter the WEBUI, find the voice switch in the settings page and turn it off.
b. Controller Software→Device→Device Setting, turn off the "enable voice", and click"ok"
Q: Can the base station and rover station be interchangeable?
A: The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same.You can use the controller to choose the working mode of the device and set it as the base station or rover station.
Q: What is CORS?
A: CORS is called a continuous operating reference station system. It can be understood as a bas e station that is erected at a fixed known point and works continuously for 24 hours and sends its own data to a specific serverthrough the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normal network operation.
