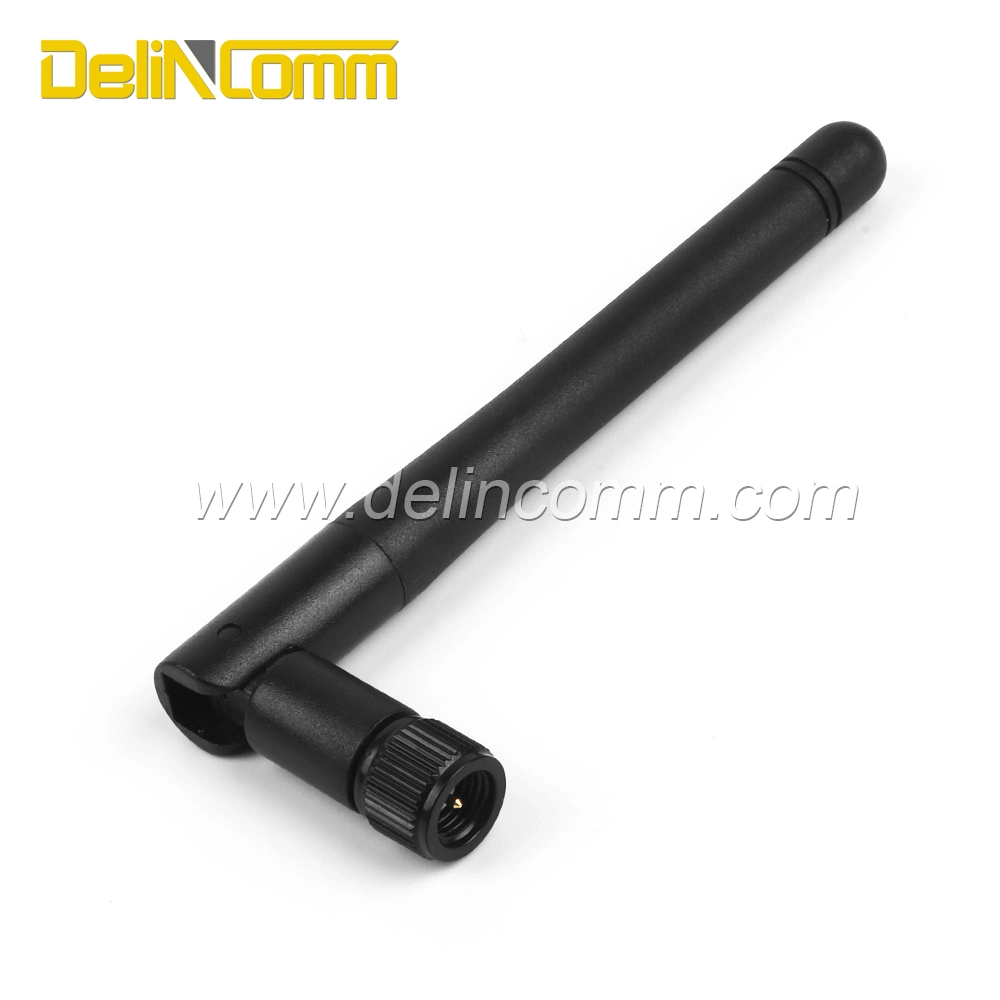

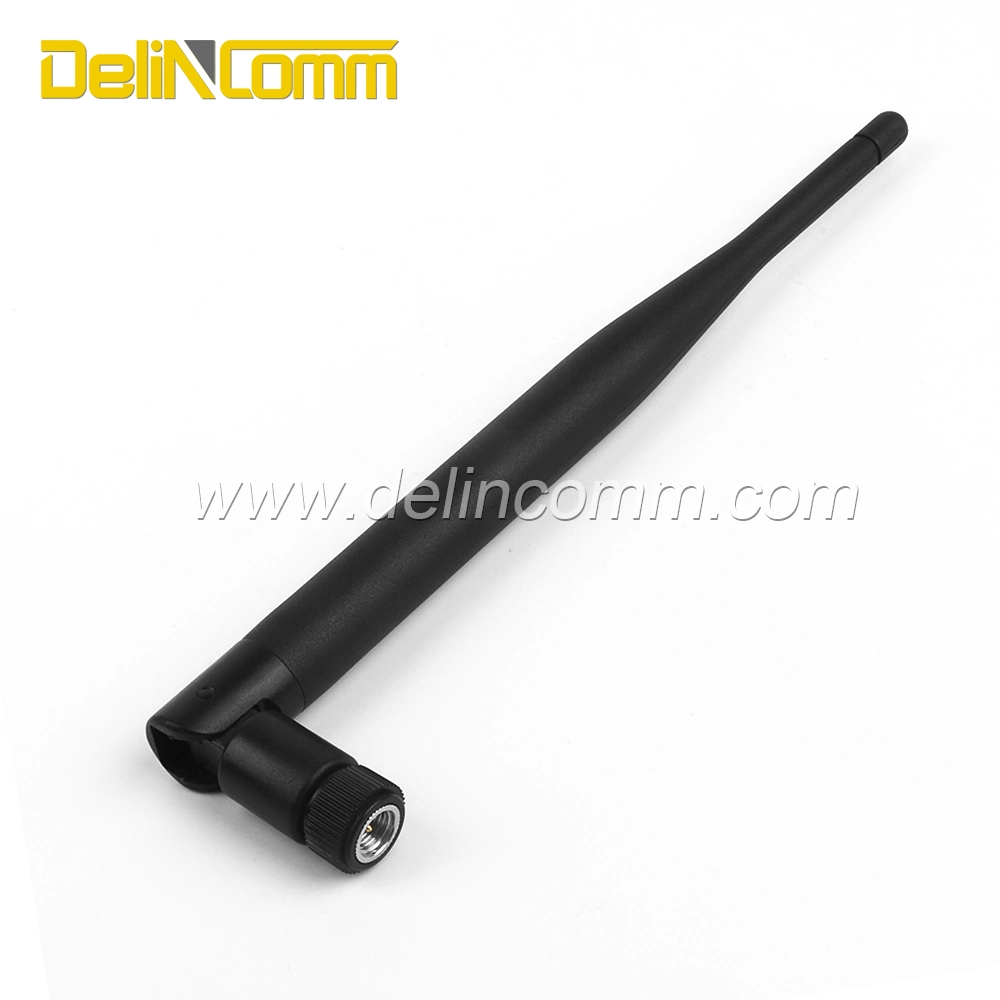

High Quality Antenna 433MHz Collapsible Rod Antenna
Antenna Characteristics
Antenna Characteristics
| NO. | Item | Specifications |
| 1 | Range of Receiving Frequency | 433Hz |
| 2 | V.S.W.R(in Center Frequency) | ≤2.0 |
| 3 | Gain (Zenith)(dBi typ) | 2,0 |
| 4 | Radiation | OMNI |
| 5 | Power Capacity | 50 |
| 6 | Polarization | Vertica |
| 7 | Size(mm) | φ13x195 |
| 8 | Connector Type | SMA straight male head |
| 9 | Mounting | Screw |
| 10 | Color | black |
| 11 | Weight(gram) | 18.6 |
| 12 | Operating Temp. | -40ºC~+85ºC |
| 13 | Storage Temp. | -45ºC~+85ºC |
| 14 | Operating Humidity | 0%~95% |
| 15 | Storage Humidity | 0%~95% |
