9.7-inch high-brightness TFT LCD display, 1024*768 resolution/RGB interface, for GPS terminal

** 9.7 inch high brightness TFT LCD display with 1024*768 resolution/RGB interface for GPS terminal **//Product Detail Picture//Drawing Picture//General InformationFeatureSpecSize9.7 inchResolution1024(RGB) x 768Technology Typea-SiPixel ConfigurationR.G.B. Vertical StripePixel pitch(mm)0.192 (H) x 0.192 (V)Display ModeTM with No

Featured Products

9.7 Inch High Brightness TFT LCD Display with 1024*768 Resolution/RGB Interface for GPS Terminal
** 9.7 inch high brightness TFT LCD display with 1024*768 resolution/RGB interface for GPS terminal **

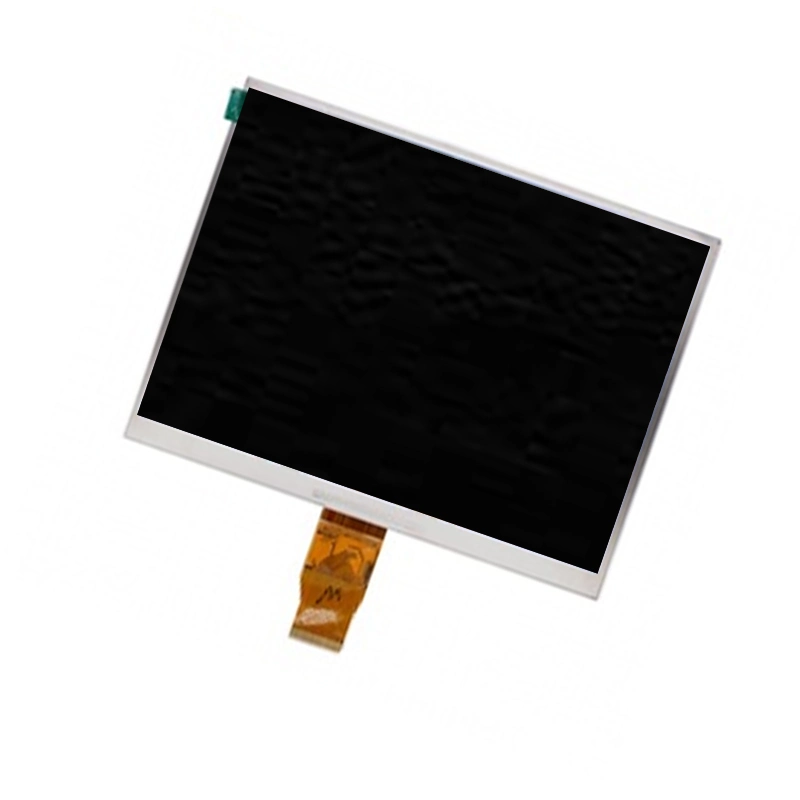

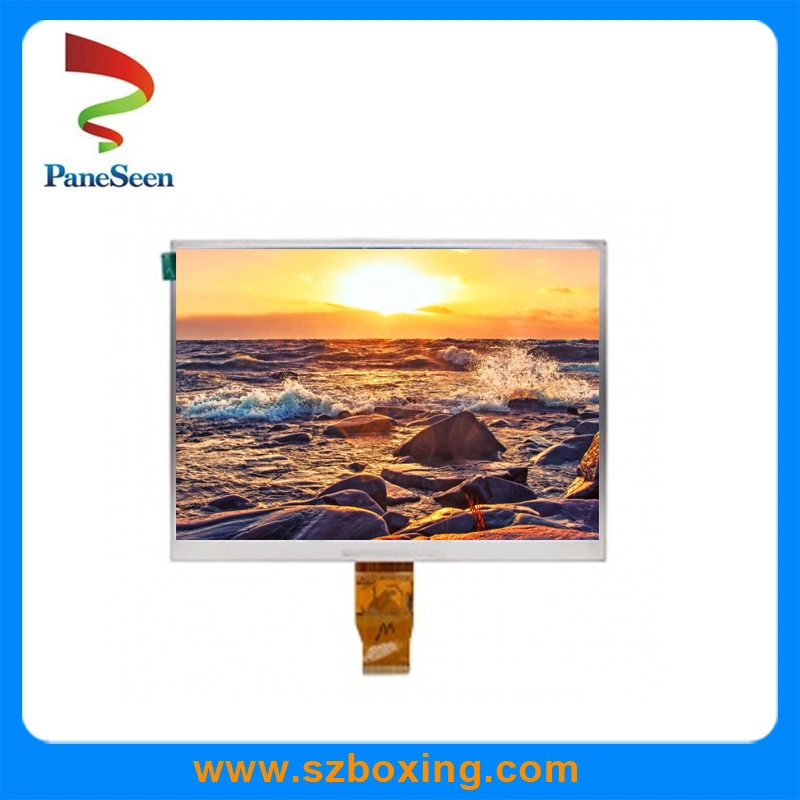

//Product Detail Picture
9.7 Inch High Brightness TFT LCD Display with 1024*768 Resolution/RGB Interface for GPS Terminal


//Drawing Picture
9.7 Inch High Brightness TFT LCD Display with 1024*768 Resolution/RGB Interface for GPS Terminal


//General Information
FeatureSpec
Size9.7 inch
Resolution1024(RGB) x 768
Technology Typea-Si
Pixel ConfigurationR.G.B. Vertical Stripe
Pixel pitch(mm)0.192 (H) x 0.192 (V)
Display ModeTM with Normally White
Surface TreatmentAnti Glare(3H)
Viewing Direction3 o'clock
Gray Scale Inversion Direction9 o'clock
LCM (W x H x D) (mm)210.2(W)×166.2(H)×3.66(D)
Active Area(mm)196.608 (W) x 147.456 (H)
With /Without TSPWithout TSP
Matching Connection TypeCN1: FH28-50S-0.5SH(05)
CN2: 3.5-2P(HSG)
LED Numbers36 LEDs
Weight (g)256
InterfaceRGB 24 bits with TCON
Color Depth16.7M
Driver ICNT51008H*1+NT39212H*2

Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180
degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ±5%


//Application Of the Product
9.7 Inch High Brightness TFT LCD Display with 1024*768 Resolution/RGB Interface for GPS Terminal




//About company
1.1  Profile
Shenzhen Boxing World Technology Co. Ltd( which is based in Shenzhen , Hong Kong company is P&S Electronics Technology Corporation Limited). is a leading developer, manufacturer and integrator in the field of TFT LCD modules , Touch Panel and some other LCD's related products and total display application solutions. We have been working in this field for more than 10 years since its first LCD agent's business in 2004.

Our products have been widely used all over the world for more than 100 countries and regions and have been rooted in domestic and international markets with over 1000 customers.

1.2  Our core business covers products
TFT LCD Screen, Touch Panel, LCD display modules, Android LCM, LCD driver and control boards, and other LCD's related products and total display application solutions.



//Quality Management System
Quality management system: Total Quality Management (TQM), OQC 100% inspection, ISO9001:2008
Quality policy: Quality first, customer satisfaction, scientific management, continuous improvement.
Supply Chain Management: Through the company's assessment and pick out the qualified suppliers, and regular audit to them.
Material Inspection: AQL=0.25
Shipment inspection: AQL=0.65
Online quality: According to <QC control worksheet> control, inspection, implementation.
Complaints Dealing: within 12 hours.
Quality Standard: ISO9001:2008
Quality Improvement: 7 major techniques of QC
9.7 Inch High Brightness TFT LCD Display with 1024*768 Resolution/RGB Interface for GPS Terminal




//Our Services
We can offer the whole process LCD screen product specialized knowledge and the technical consultation service support, as long as is related to the LCD screen. Our services and help are not only limited to pre-sale, but also during manufacture, deliveries and after sales.

Pre sales
1. Offer competitive price, best value for money.
2. Offer support and help for design at 0 cost.
3. Suitable and stable LCD resource supply, designed and manufactured at industrial quality principle and standards.
4. Continuous LCD resource supply capacity, 5 to 10 years continuous supply capacity consideration.

Selling
1. Accurate delivery time within 3-4 weeks as a guarantee.
2. Convenient, fast and safe transportation available at any work time.

After sale
1. Following up customer twice per month at least.
2. Quick response for new request within 24 hours.


//Quality Control
- Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
- We will test goods strictly according to our standard inspection before shipment.
- If exceed this standard, clients can ask for returning and get new.
9.7 Inch High Brightness TFT LCD Display with 1024*768 Resolution/RGB Interface for GPS Terminal

//Package & Delivery
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
9.7 Inch High Brightness TFT LCD Display with 1024*768 Resolution/RGB Interface for GPS Terminal

//Warranty
The period is within 12 months since the date of shipping out under normal using  and storage conditions.
