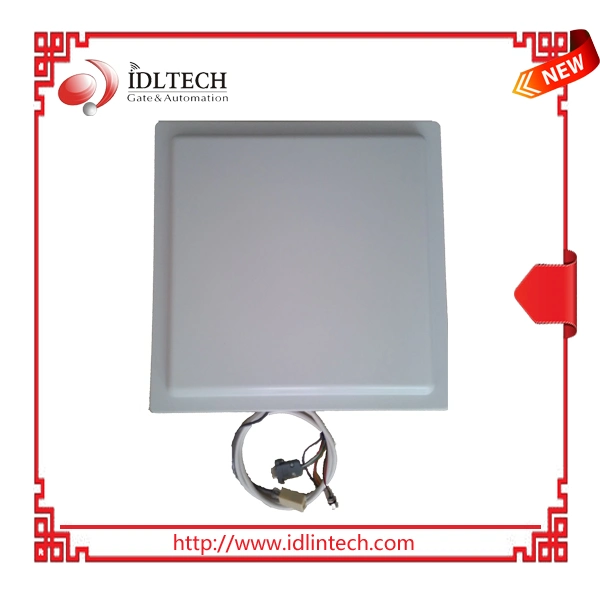

Remote UHF RFID Antenna for Parking Systems

Up to 12m reading; Compatible 6C and 6B agreement; Support multiple language SDK.Function FeaturesReliable reading range can reach up to 12mCompatible 6C and 6B agreementSupport multiple language SDK package, system connecting is convenientCan customize RJ45 interfaceIntegrative industrial design, water-proof, sun-defending, con

Featured Products

Up to 12m reading; Compatible 6C and 6B agreement; Support multiple language SDK.

Function Features
Reliable reading range can reach up to 12m
Compatible 6C and 6B agreement
Support multiple language SDK package, system connecting is convenient
Can customize RJ45 interface
Integrative industrial design, water-proof, sun-defending, convenient installation

Technical Parameters
Self-intellectual property;
Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
902~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable);
8dbi/12dbi antenna optional with effect distance up to 8m/;
Support auto-running, interactive and trigger-activating work mode;
Low power dissipation with single +9 DC power supply;
Support RS232, RS485, Wiegand interface;
* Effective distance depends on antenna, tag and environment.

Application

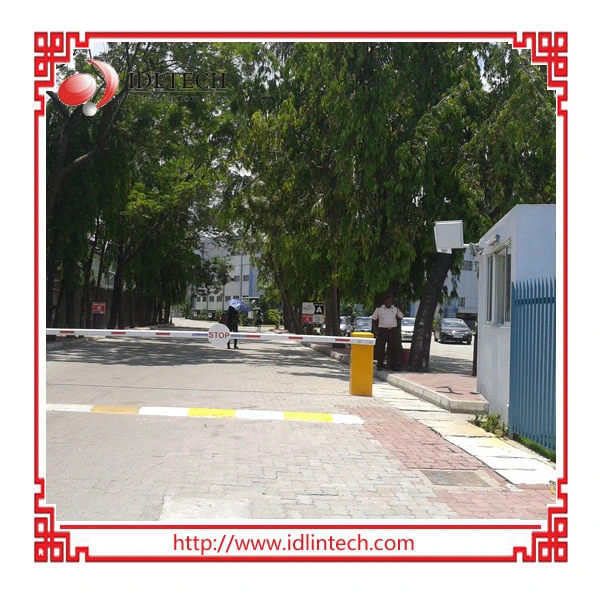

Vehicle intelligent management: Car parking lot, speed way non-stop toll, customs using, weighing automatically, etc.
Production flew-line intelligent management: Intelligent sorting of products on flew-line, etc.
Warehouse management: Cargoes in and out automatic recording, etc.
Logistics management: Container management, tray management, asset tracking, etc.
People management: In and out management at school gate, in and out management at factory gate, etc.

Long Range UHF RFID Antenna for Parking System
Long Range UHF RFID Antenna for Parking System
Long Range UHF RFID Antenna for Parking System
Long Range UHF RFID Antenna for Parking System
Long Range UHF RFID Antenna for Parking System
