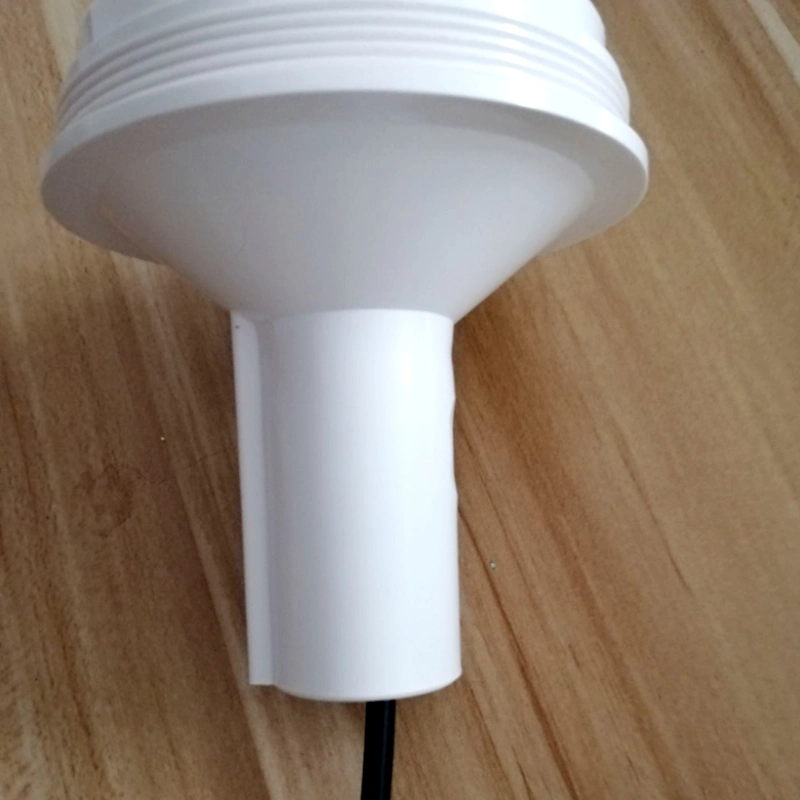

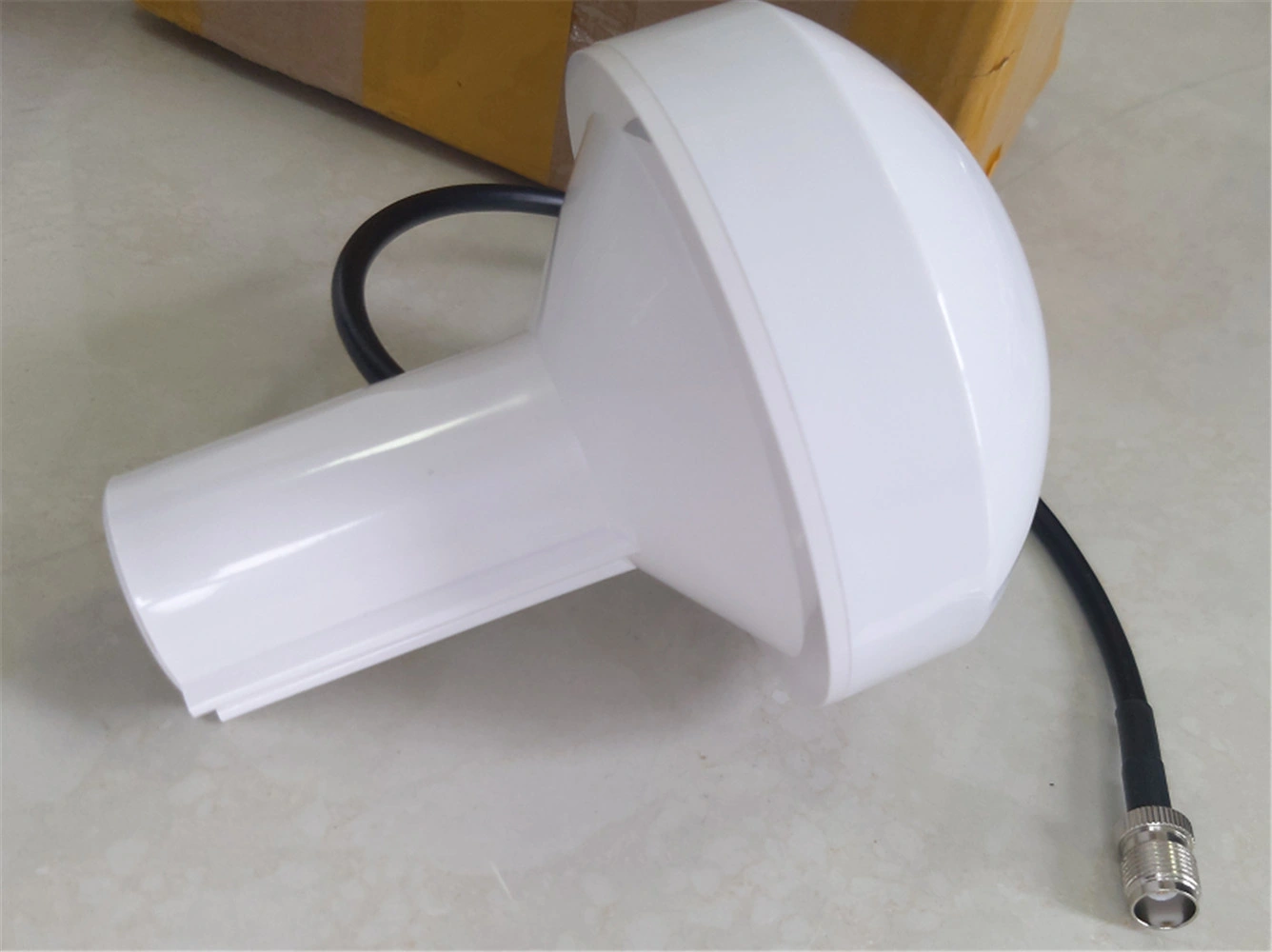

GPS navigation antenna,
Waterproof,
Anti-corrosion,
Lightning protection devices.
The built-in amplifier, can resistance to
electromagnetic Interference and to receive
satellite signals to the low angle.
Features
- Miniature size (96mm 96mm 127mm)
- Worries about where to install are eliminated, wiring is simplified.
- Customized connector and cable are available.
- Various optional extras (mounting fixtures, spongers, and clips, etc.) are available to satisfy your needs.
- Connector types: SMA, MCX, MMCX, SMB, TNC, BNC…
| Antenna | Item | Specifications |
| Reception frequency | 1575.42-1602MHz | |
| bandwidth | ±10MHz | |
| Reception polarization | RHCP | |
| Antenna gain | 3dBic | |
| Output impedance | 50Ω | |
| LNA | Reception frequency | 1575±10MHz |
| Noise factor | <1.0 | |
| Gain | 42±2dB | |
| VSWR | <1.5 | |
| DC current | <7mA | |
| Overall | Max Power | 50mW |
| Cable | SYV50-3/5/7 | |
| Antenna weight | 0.15kg | |
| Power supply voltage | 2.7V to 5.0V | |
| Shell color | white | |
| Waterproof | 100% | |
| Working temp | -30ºC~85ºC |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
