Popular E-Survey E800 Receiver GPS Gnss Antenna Dual Frequency Rtk with Imu Tilt Measurement

PRODUCT DESCRIPTIONE800 integrated intelligent receiver is a new generation of surveying product that will be launched by our company. It is a high-end of RTK receiver, using magnesium-alumi- num alloy. The highly integrated body has excellent ability of heat dissipation and anti-interference, high precision, more stability, str

Featured Products

PRODUCT DESCRIPTION
Popular E-Survey E800 Receiver GPS Gnss Antenna Double Frequency Rtk with Imu Tilt Survey
E800 integrated intelligent receiver is a new generation of surveying product that will be launched by our company. It is a high-end of RTK receiver, using magnesium-alumi- num alloy. The highly integrated body has excellent ability of heat dissipation and anti-interference, high precision, more stability, strong compatibility and environmental applicability

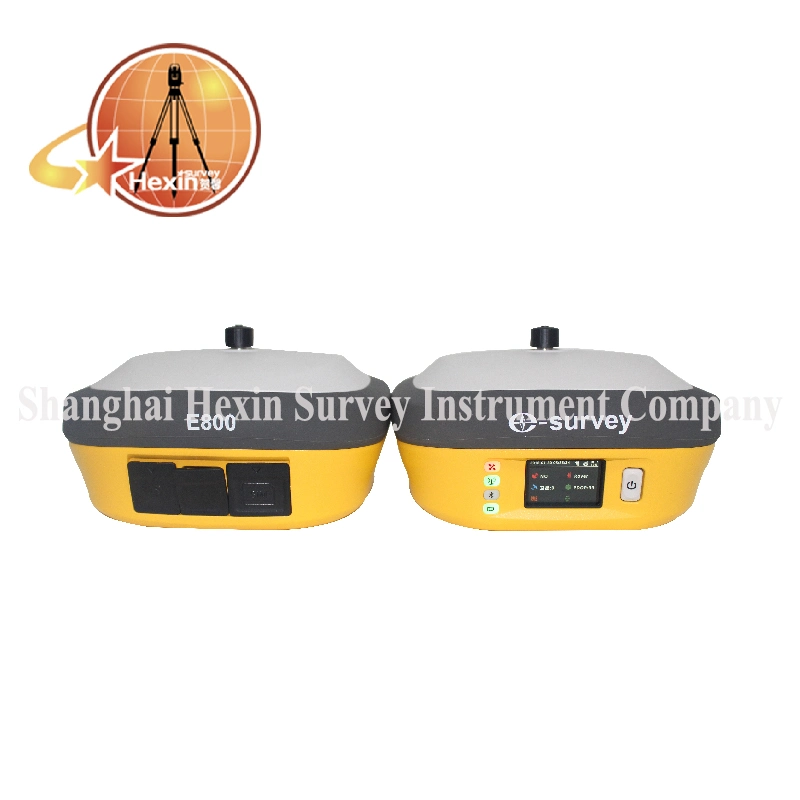

PRODUCT SHOW
Popular E-Survey E800 Receiver GPS Gnss Antenna Double Frequency Rtk with Imu Tilt SurveyPopular E-Survey E800 Receiver GPS Gnss Antenna Double Frequency Rtk with Imu Tilt SurveyPopular E-Survey E800 Receiver GPS Gnss Antenna Double Frequency Rtk with Imu Tilt SurveyPopular E-Survey E800 Receiver GPS Gnss Antenna Double Frequency Rtk with Imu Tilt SurveyPopular E-Survey E800 Receiver GPS Gnss Antenna Double Frequency Rtk with Imu Tilt Survey

PRODUT SPECIFICATION

E-Survey E800 GNSS Receiver's Specification
Model
 E800-HE800-T
Satellite Tracked
Channels600336
GPSL1CA, L1C, L2C,L2P, L5, L1PL1CA, L2E,L2C,L5;
GLONASSG1, G2, P1, P2L1CA, L2CA, L3 CDMA
BeiDouB1, B2, B3; B1, B2, B3;

GALILEO

E1BC, E5A,E5BE1,E5A,E5AltBOC, E5B, E6
NAVICNo Navic. L-BANDL5
QZSSL1CA, L1C, L2C, L5L1CA, L1C, L2C, L5, L1SAIF
SBASL1CA, L5L1CA, L5
Static Accuracy
Horizontal2mm+1ppm RMS2mm+1ppm RMS
Vertical3mm+1ppm RMS3mm+1ppm RMS
RTK Accuracy
Horizontal4mm+1ppm RMS4mm+1ppm RMS
Vertical8mm+1ppm RMS8mm+1ppm RMS
SBAS Accuracy
Horizon0.3m RMS0.5m RMS
Code differential Accuracy
Horizon0.25m RMS0.25m RMS
Update rateUp to 50 HzUp to 50 Hz
Power Supply
BatteryBuilt-in rechargeble batteries, 7.2V/3400mAh*2
Working timeUp to 12 hours
Input9-28V DC, with over-voltage protection
Data Interface
LCD1.45" TFT LCD VGA (320*240), Capactive touch screen, multi-touch

TNC

Four UHF Antenna

5-pinExternal radio and External power, RS232
Type-CDC input@5V/9V/15V/20V, PD3.0 USB OTG, USB2.0 RS232
ButtonsPower button
Indicator4 indicators, GNSS/BT/UHF/PWR
Communication
MemoryInternal 16G; support TF card, Up to 32G
BluetoothV2.1+EDR/V4.1Dual mode, Class 2
WIFI802.11b/g/n
4GGRM/GPRS/EDGE/LTE/UMTS/WCDMA
Internal UHFTX (2/5W adjustable) & RX, Frequency 410-470 Mhz, work distance: 10km in optimal environment.
Web UITo manage the status and settings, upgrade the firmware, data download
Electronic BubblesSupport
Tilt SurveySupport
Physical
Dimmension158mm*158mm*72mm
Weight1.25KG
Environment
Work Temperature-45ºC~+65ºC
Storage Temperature-50ºC~+80ºC
Water/Dust proofIP67, IP68 (Russain Version)
VibrationVibration resistant
ShockSurvive a 2 m(6.6 ft) pole drop, 1.2m (3.9ft) free fall
Humidity100% condensing

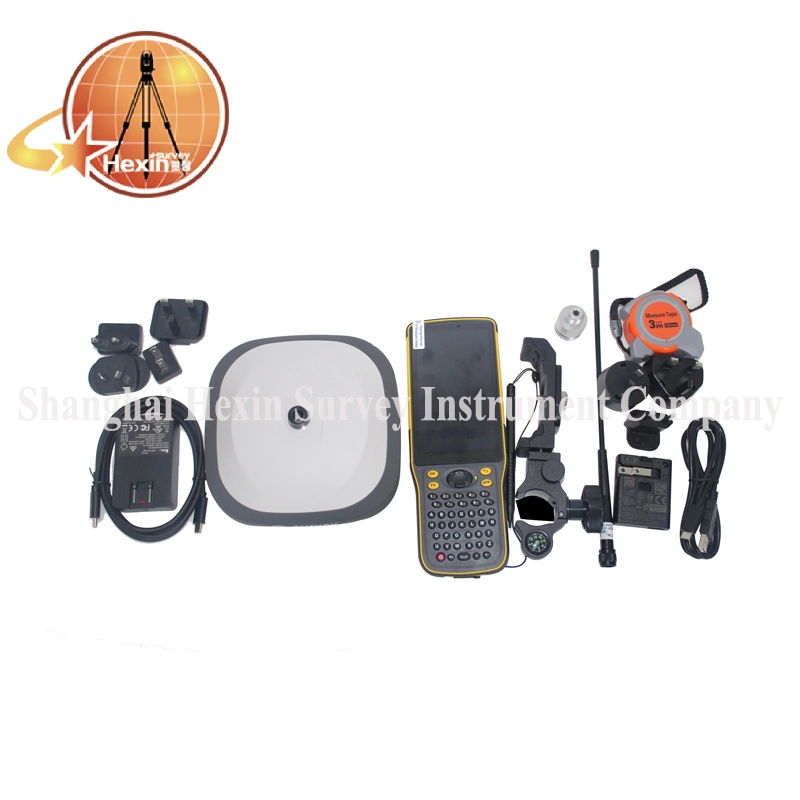

PACKING & SHIPPING

Popular E-Survey E800 Receiver GPS Gnss Antenna Double Frequency Rtk with Imu Tilt Survey
PAYMENT


Popular E-Survey E800 Receiver GPS Gnss Antenna Double Frequency Rtk with Imu Tilt Survey

COMPANY INFORMETION

Shanghai Hexin Survey Instrument Co., LTD has 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in MainlandChina. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying  accessory, GPS receiver, mapping software, etc.The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services  during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!








Popular E-Survey E800 Receiver GPS Gnss Antenna Double Frequency Rtk with Imu Tilt Survey

FAQ

Q:How to turn off voice broadcast of receiver?
A: a. Enter the WEBUI, find the voice switch in the settings page and turn it off.

b. Controller Software→Device→Device Setting, turn off the "enable voice", and click"ok"

Q: Can the base station and rover station be interchangeable?
A: The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same.You can use the controller to choose the working mode of the device and set it as the base station or rover station.

Q: What is CORS?
A: CORS is called a continuous operating reference station system. It can be understood as a bas e station that is erected at a fixed known point and works continuously for 24 hours and sends its own data to a specific
serverthrough the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normal network operation.
