Quick Details
Place of Origin: Changzhou, China
Brand Name: Ocsonic/OEM
Model Number: 20-5024
Type: BNC
Application: Audio & Video
Gender: Female
Temperature Range: -55~+1550C(PE Cable-40~+85°C)
Inpedance: 50Ω,75Ω
Frequency Range: DC-4GHZ
Working Voltage: 500V r.m.s at sea level
Withstanding Voltage: 1500V r.m.s at sea level
Contact resistance: Center≤1.5mΩ Outer≤1mΩ
Insulation rssistance: ≥5000MΩ
Center conductor retention force: ≤0.57N
Insertion Loss: 0.20dB/3GHz
Durability(mating): ≤500(cycles)
Supply Ability
Supply Ability: 50000 Piece/Pieces per Week OEM & ODM
Packaging & Delivery
Single package size: 10X10X10 cm
Single gross weight: 0.030 kg
Package Type: Standrad package or as your request
Port: Shanghai
Place of Origin: Changzhou, China
Brand Name: Ocsonic/OEM
Model Number: 20-5024
Type: BNC
Application: Audio & Video
Gender: Female
Temperature Range: -55~+1550C(PE Cable-40~+85°C)
Inpedance: 50Ω,75Ω
Frequency Range: DC-4GHZ
Working Voltage: 500V r.m.s at sea level
Withstanding Voltage: 1500V r.m.s at sea level
Contact resistance: Center≤1.5mΩ Outer≤1mΩ
Insulation rssistance: ≥5000MΩ
Center conductor retention force: ≤0.57N
Insertion Loss: 0.20dB/3GHz
Durability(mating): ≤500(cycles)
Supply Ability
Supply Ability: 50000 Piece/Pieces per Week OEM & ODM
Packaging & Delivery
Single package size: 10X10X10 cm
Single gross weight: 0.030 kg
Package Type: Standrad package or as your request
Port: Shanghai

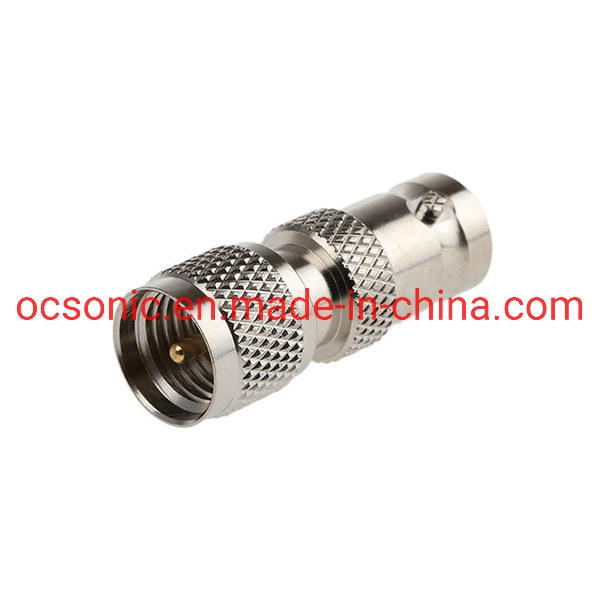

Product Name: BNC Connector Female to Female Adapter Coaxial BNC Connector
Tag: BNC Cable, Plug/Male, Straight/180°, 50/75Ω,
Advantages:
• Compact Design for less installation space required; • Easy quick connect and disconnect coupling; • High cost-effective with good quality;
• 50 Ω DC to 4 GHz
• 75 Ω DC to 1 GHz
• Test performance meets MIL-C-39012
We offer a full range of pre-assembled, fixed length, standard cable assemblies. Standard assemblies are for use in a variety of commercial and industrial applications that require standard configurations or lengths. Cables are available with most commercially available RF connector series mounted to popular flexible cables as well as semi-rigid conformable (hand formable)
cable. Custom assemblies are also available.
• 50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements;
• 50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating;
• Three grades of connectors are available for military, industrial and commercial applications.
Tag: BNC Cable, Plug/Male, Straight/180°, 50/75Ω,
Advantages:
• Compact Design for less installation space required; • Easy quick connect and disconnect coupling; • High cost-effective with good quality;
• 50 Ω DC to 4 GHz
• 75 Ω DC to 1 GHz
• Test performance meets MIL-C-39012
BNCs are suited to accommodate a large variety of RG and industry-standard cables, in a variety of termination styles. A full line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories complement the product offering.
Features:
- Light weight, compact and vibration proof design
- Low cost commercial grade (Brass BNC) available in nickel or gold plating
- Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables
We offer a full range of pre-assembled, fixed length, standard cable assemblies. Standard assemblies are for use in a variety of commercial and industrial applications that require standard configurations or lengths. Cables are available with most commercially available RF connector series mounted to popular flexible cables as well as semi-rigid conformable (hand formable)
cable. Custom assemblies are also available.
• 50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements;
• 50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating;
• Three grades of connectors are available for military, industrial and commercial applications.
BNC Connector Technical Datasheet
| Technical Characteristics |
| temperature range | -5 degree to +155 degree(PE cable -40degree to +85 degree) |
| Impendance | 50ohm,75ohm |
| Frequency Range | DC -4GHz |
| Working Voltage | 500V r.m.s at sea level |
| Contact Resistance | Center contact≤1.5m Ω,Outer contact≤1m Ω |
| Contact Pin | Brass/gold/tin/nickel plated |
| Insulation resistance | ≥5000M Ω |
| Center Conductor Retention Force | ≥0.57N |
| Voltage Standing Wave Ratio | Straight≤ 1.22/3GHZ,Right angle≤ 1.30/3GZ |
| Durability(mating) | ≤500cycles |
| Body | Brass--Ni plated |
| Ferrule | cooper,nickel |
| Suitable cables | RG6,RG58,RG59,RG174,RG179,RG316.(more option,pls contact us) |
Advantages: • Compact Design for less installation space required; • Easy quick connect and disconnect coupling; • High cost-effective with good quality
Hot-Selling Products
Applications
 |  |  |
Aerospace Electronics (avionics) | Analog and Serial Digital Interface Video Signals | Antenna |
 |  |  |
| Nuclear Instrumentation | Pharmaceutical Manufacturing | Test Equipment |
