Small 3.7V 401030 80mAh Li-polymer battery with PCM, Ntc for GPS device

Small 3.7V 401030 80mAh LiPo battery with PCM, NTC for GPS device1.Model: AS4010302:Voltage:3.7V3:Capacity:80mAh4.For bluetooth headphone/bluetooth speaker/3C Digital products5.With PCM and Connector are available 6.Certificate: UL1642/IEC62133/UN38.3Specification of 401030 80mah lipo battery: ItemRatingNoteNominal Cap

Featured Products

Small 3.7V 401030 80mAh LiPo battery with PCM, NTC for GPS device


1.Model: AS401030
2:Voltage:3.7V
3:Capacity:80mAh
4.For bluetooth headphone/bluetooth speaker/3C Digital products
5.With PCM and Connector are available
6.Certificate: UL1642/IEC62133/UN38.3

Specification of 401030 80mah lipo battery:

ItemRatingNote
Nominal Capacity 80mAh

Discharge:0.2CmA
cut off Voltage:3V for cell
Nominal Voltage3.7VDischarge:0.2CmA
cut off Voltage:3V for cell
Discharge Cut-off Voltage3.00V
Charge Current16mAStandard Charge
Charge Voltage4.2V
Max. Charge Voltage4.23V
Storage humidity< 75%RHHyometer
Fast Charge current80mA1.0CmA
Fast Discharge Current80mA1.0CmA
Operating
Temperature
Charge0~+45ºCCan be operated at max Altitude 3000m and 8%~90% humidity.
Discharge-10~+50ºCGet more than 50% discharge capacity (typical) in -15°C or +55°C.
Storage
Temperature
less than 1 month-10~+45ºCRecommended storage temp: 20ºC,at the shipment state.
less than 3 months-10~+35ºC

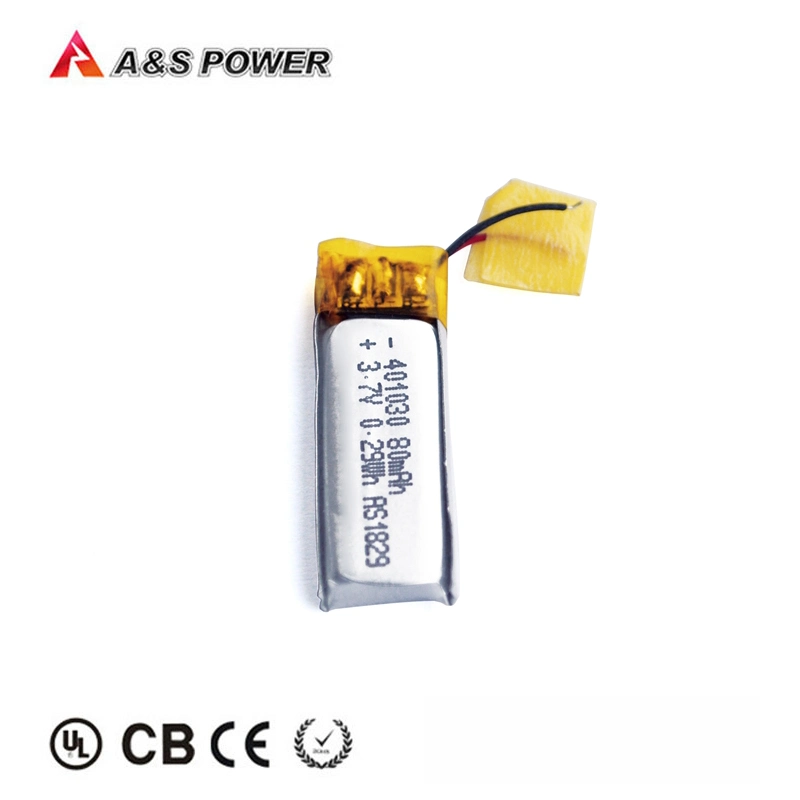

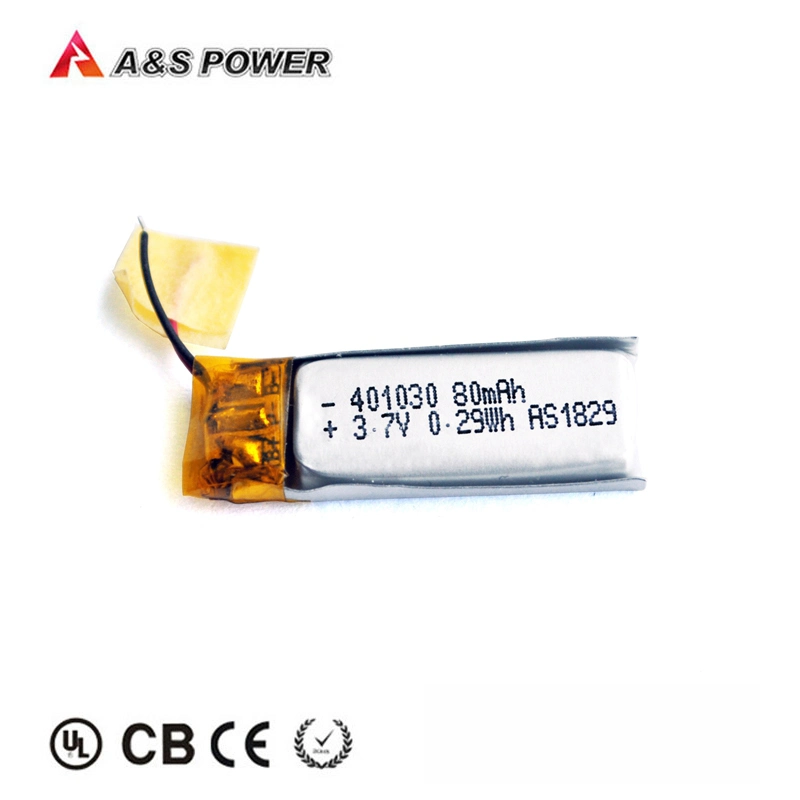

Product Pictures:

Small 3.7V 401030 80mAh Lipo Battery with PCM, Ntc for GPS Device
Small 3.7V 401030 80mAh Lipo Battery with PCM, Ntc for GPS Device




Small 3.7V 401030 80mAh Lipo Battery with PCM, Ntc for GPS Device

Main features:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 times
7) No memory effect
8) Doesn't contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same.

Application:

1)MP3/MP4 player, Bluetooth, speakers, car GPS and all possible electronics products
2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.


Small 3.7V 401030 80mAh Lipo Battery with PCM, Ntc for GPS Device


Small 3.7V 401030 80mAh Lipo Battery with PCM, Ntc for GPS Device

Low Risk Promise


1. For lithium polymer battery, we can provide 5pcs( capacity < 500mAh) of free samples and buyers pay for the shipping cost. If items in stock, we can send out sample within 5 days.
2. For order over 2000pcs, Buyer gets a cash coupon of 50 USD for next order
3. For order over 10000pcs, Buyer gets a cash coupon of 100 USD for next order

Our cooperative policy

1. Making the sample until you are satisfied with it.
2. Offering professional one-on-one service and replying your E-mail within 12 hours
3. Inspection before shipment.
4. Priority to get the our latest product information after our cooperation

One-Year-Warranty

We want you to be fully satisfied with every item that you purchase from A&S Power.
Furthermore, we also provide one-year warranty for batteries.
And if any quality problems, not caused by improper use or man-made, A&S Power will replace it one by one.


"Market and Technical support email within 24 hours"


Small 3.7V 401030 80mAh Lipo Battery with PCM, Ntc for GPS Device

Small 3.7V 401030 80mAh Lipo Battery with PCM, Ntc for GPS Device

Shipping methods
Destination Normally arrive at port time in working days
Ship by expressShip by seaShip by air
 North America 3-7 days 15-28 days 5-7 days
 South America 3-7 days 15-30 days 5-7 days
 European 3-7 days 20-30 days 5-7 days
 Africa 5-7 days 45-50 days 5-7 days
 The Middle East 3-5 days 15-30 days 3-5 days
 Australia 3-7 days 10-20 days 5-7 days


Other KC/UL approved lithium polymer battery model as below:
(some models with CB/IEC62133/UN38.3)

ModelCell Dimension  With PCM DimensionCapacity
3020253.0*20*25mm3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm4.2*26*27.5mm 3.7V 200mAh
483450

 4.8*34*50mm

5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm5.7*35*46.5mm3.7V 850mAh
553640 5.5*36*40mm5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm5.7*38*61.5mm   3.7V 1400mAh
602030 6.0*20*30mm6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm3.7V 500mAh
602663 6.0*26*63mm6.2*27*65.5mm  3.7V 1000mAh
603030 6.0*30*30mm6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm6.2*35*52.5mm  3.7v 1050mAh
702040 7.0*21*40mm7.2*22*42.5mm3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm8.2*31*37.5mm 3.7V 800mAh

Small 3.7V 401030 80mAh Lipo Battery with PCM, Ntc for GPS Device
Small 3.7V 401030 80mAh Lipo Battery with PCM, Ntc for GPS Device
Small 3.7V 401030 80mAh Lipo Battery with PCM, Ntc for GPS Device

More battery models welcome to contact us.
Looking forward to your inquiry and thanks for your viewing.
