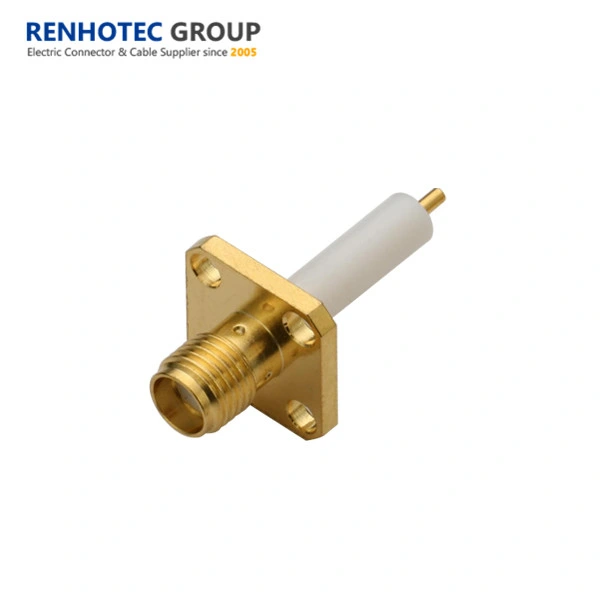

Straight panel receptacle RF connector SMA connector
1.good quality with reasonable price.
2.Prompt delivery
3.ROHS compliant
4.best service
Hot sell SMA connectors for electronic:
SMA connector series product is widely used small coaxial connectors with threaded connections, high strength, and good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum. Using the appropriate adapter cables, SMA connectors in the 18GHz still has good electrical properties. SMA series has long product life, superior performance and high reliability. Widely used in microwave devices and digital communications equipment RF circuit to connect the RF coaxial cable or microstripit, and the width performance are excellent, high frequently.
Applications:
1.Base Stations
2.Cable Assemblies
3.Components
Major technical characteristics:
Temperature Range: -55 to +155°c(PE Cable-40 to 85°c)
Vibration: 100m/s2 (10-2000Hz)
Impedance: 50Ω
Frequency: DC to 12.4GHZ(semi-rigid cable: 0-18 GHz)
Working Voltage: 335V r.m.s at sea level
Withstanding Voltage: 1000V r.m.s at sea level
Contact Resistance
Center contact: ≤3m Ω
Outer contact: ≤ 2.5m Ω
Insertion Loss: ≤0.15dB(6GHz)
Insulation resistance: ≥5000M Ω
Center Conductor Retention Force: ≥0.28N
Coupling nut retention force:≥ 180N
Voltage Standing Wave Ratio
Straight: ≤ 1.10+0.02f
Right angle:≤ 1.20+0.03f
Durability(mating): ≥ 500cycles
Instrumentation: Mil/Aero and PC/LAN
Process Controls: Telecom
Material and plating:
Body:Coupling Nuts, Other Metal Parts (except as noted)Brass per QQ-B-626
Contacts Male: Brass
Female: Beryllium copper, heat treated
Center Contact Plating: 000030" minimum gold
Plating (Other Metal Parts)Standard:000010" gold or nickel plated
Insulators: fluorocarbon
Gaskets: Silicone rubber
Crimp Ferrule Seamless :copper tubing alloy
APPLICABLE STANDARD
MIL-C-39012
CECC 22110
IEC 60169-15
Renhotec Hardware Electronics Co., Ltd
Quality is essential to both of us, we believe that excellent quality, reasonable price, mutual benefit will be good basis of our cooperation. If you have any requirement, please contact us. We are looking forward to cooperating with you!
As a major enterprise of RF products in China, our company manufactures a full range of products, including:
1) MMCX RF coaxial connectors
2) MCX RF coaxial connectors
3) SMA RF coaxial connectors
4) SMB RF coaxial connectors
5) SMC RF coaxial connectors
6) SSMA RF coaxial connectors
7) SSMB RF coaxial connectors
8) SSMC RF coaxial connectors
9) TNC RF coaxial connectors
10) BNC RF coaxial connectors
11) N RF coaxial connectors
12) 7/16 (L29) RF coaxial connectors
13) 1.6/5.6 (L9) RF coaxial connectors
14) F RF coaxial connectors
15) 1.0/2.3 (CC4) RF coaxial connectors
16) UHF RF coaxial connectors
17) MINI UHF RF coaxial connectors
18) FME RF coaxial connectors
19) TAC RF coaxial connectors
20) Reverse polarity connectors
21) Plug for cell-phones and special purpose connectors
22) Coaxial terminations
23) Lightning arresters
24) Jumper cables
25) Inter-type adaptors
