There are 2 size solution for the antenna case:
49*39*14mm and 45*35*16mm
Introduction:
The active antenna is the antenna with amplifying circuit, is receiving weak signals through the passive antenna, through the amplifying circuit, the signal amplification, transmission to the host are analyzed, the positioning and navigation. Our GPS active antenna with good axial ratio, standing wave, high gain, low loss characteristics.

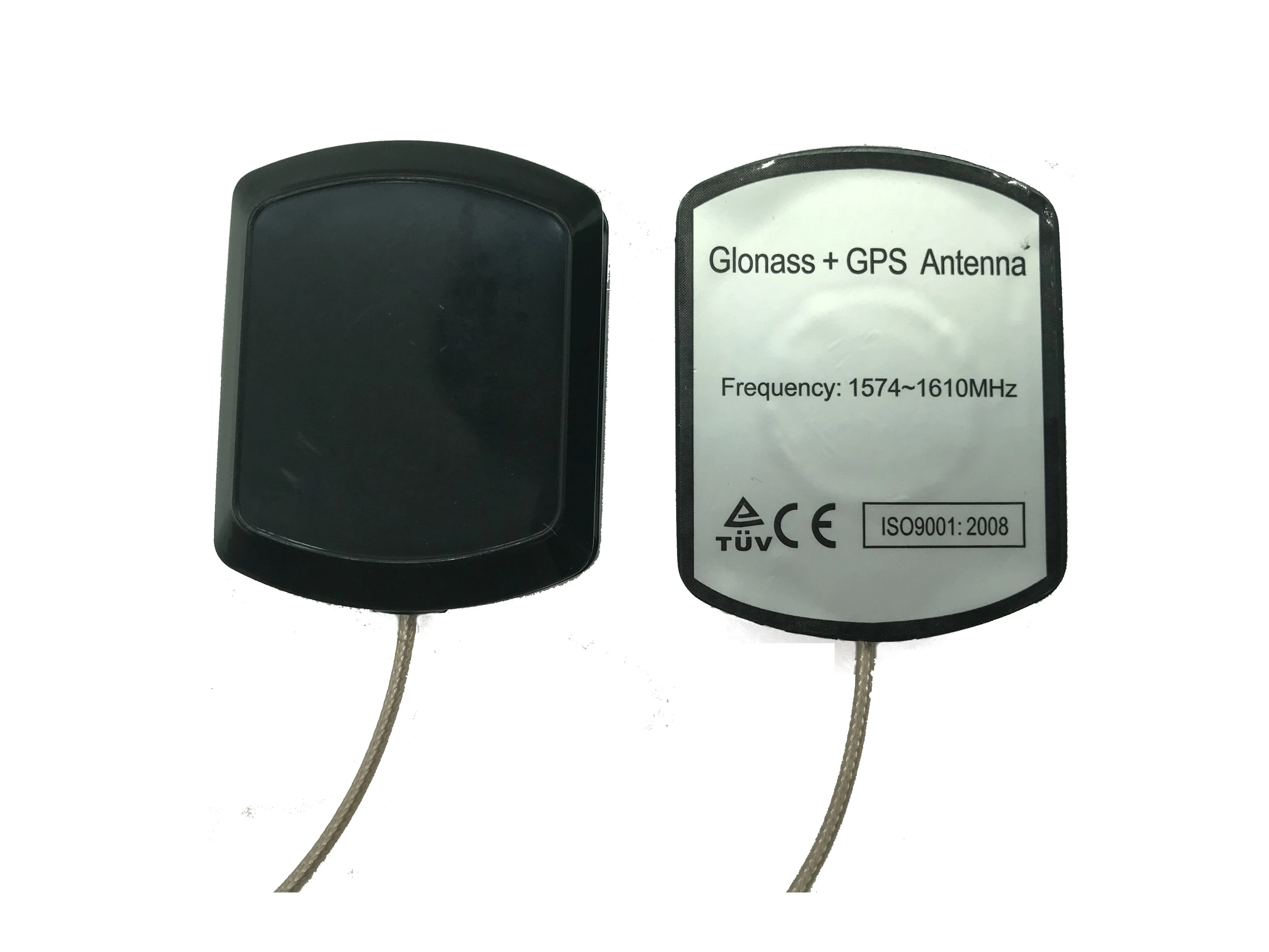

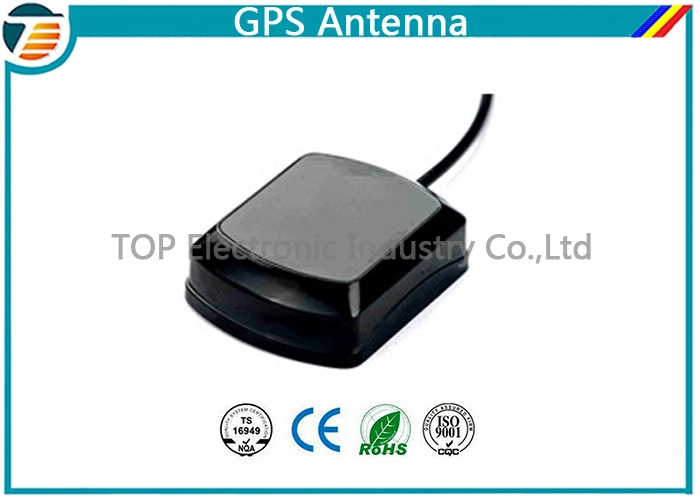

Magnet mount antenna for GPS modules operating at 3V. Designed for use with automobiles - the magnet will hold the antenna in place at speeds greater than 100mph. 3 meter cable terminated with standard male SMA connector.
SPECIFICATION
Size: 48X37X16mm
Dieletric Antenna
Center Frequency 1575.42 MHz 3 MHz
V. S. W. R 1.5: 1
Band Width 5 MHz
Impendence 50 ohm
Polarization Type RHCP
LNA / Filter
LNA Gain(Without cable) 28 2 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC current 5~15 mA
Cable RG174 5m / 3m / or others
Connector SMA / SMB / MCX / or others
Housing Black or others
Working Temp -40 c~+85 c
Humidity 55%~75%RH
Waterproof IP67
(iii)Mechanical
Application:
vehicle system, tracking production
Our Antenna:
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments.
2. How about the defective rate?
Answer: Less than 1%.
3. Where can customers get the Product Specification and other datasheets?
Answer: We will send them via email once get the request from the customers.
Our high quality products, competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
Drawing:
Packing & Shipping
we offer a series of GPS antenna, more other models bellow:
More inquiry please don't hesitate to contact us
49*39*14mm and 45*35*16mm
Introduction:
The active antenna is the antenna with amplifying circuit, is receiving weak signals through the passive antenna, through the amplifying circuit, the signal amplification, transmission to the host are analyzed, the positioning and navigation. Our GPS active antenna with good axial ratio, standing wave, high gain, low loss characteristics.
Magnet mount antenna for GPS modules operating at 3V. Designed for use with automobiles - the magnet will hold the antenna in place at speeds greater than 100mph. 3 meter cable terminated with standard male SMA connector.
SPECIFICATION
Size: 48X37X16mm
Dieletric Antenna
Center Frequency 1575.42 MHz 3 MHz
V. S. W. R 1.5: 1
Band Width 5 MHz
Impendence 50 ohm
Polarization Type RHCP
LNA / Filter
LNA Gain(Without cable) 28 2 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC current 5~15 mA
Cable RG174 5m / 3m / or others
Connector SMA / SMB / MCX / or others
Housing Black or others
Working Temp -40 c~+85 c
Humidity 55%~75%RH
Waterproof IP67
(iii)Mechanical
| Item | Specifications | |
Mechanical | PCB Dimension | 49*39*14mm / 45*35*16mm |
| Cable | RG174-U | |
| Length of cable | 3M,5M or custom made | |
| Connector | SMA,TNC,BNC,FAKRA ,MCX or others | |
| Radome Material | ABS | |
| Mounting Method | Magnetic, Adhesive | |
Environmental | Operating Temperature | -40ºC~+85ºC |
| Relative Humidity | Up to 95% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
Application:
vehicle system, tracking production
Our Antenna:
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments.
2. How about the defective rate?
Answer: Less than 1%.
3. Where can customers get the Product Specification and other datasheets?
Answer: We will send them via email once get the request from the customers.
Our high quality products, competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
Drawing:
Packing & Shipping
we offer a series of GPS antenna, more other models bellow:
More inquiry please don't hesitate to contact us
