| Material: | ABS Plastic | Capacity: | 12/24F |
|---|---|---|---|
| Connectors: | SC/FC/ST/LC | Pigtails: | 12 Colored Pigtails |
| High Light: | fiber optic cable termination patch panel,optical distribution frame | ||

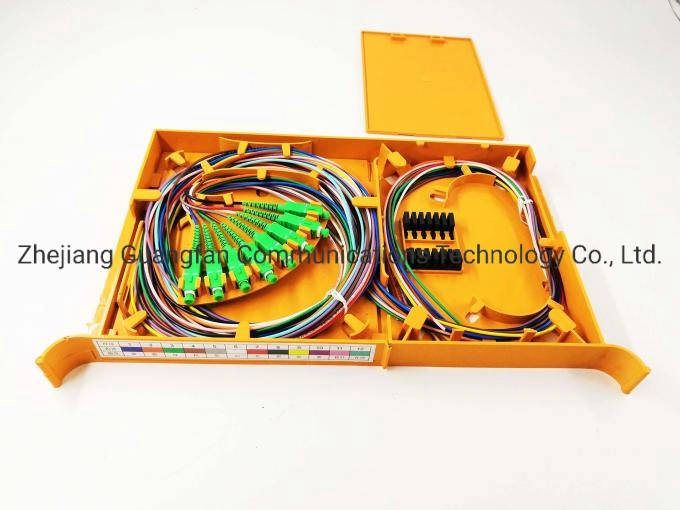

12/24 core Optical Splice Tray Cassette For Mounting Fiber Optic Cross Connection Cabinet/ODF
Fiber splice tray, fiber optic splicing and distribution box, also named ODF fiber management system. It is used for cableinputting, fixing, protecting, and splicing with pigtails. The product is specially designed for fiber distribution in fiber optic communication service center. It can be installed in the distribution frame, and can be also assembly with digital distribution unit, and audio distribution unit together in one fiber optic composite cabinet. The product is with flexible configuration, easy to install and maintain, convenient to manage. It is the necessary device in termination of fiber optic network, and can realize the distribution at the intermediate route.
Features:
Small light design for easy and convenience installation
Standard colors for 12 different cables.
Tightly lock for 8+4 adapters together
12pcs 2.0mm colorful pigtails
SC/UPC or SC/APC connector optional
Independent space for splicing and connecting
Excellent appearance and clear markers.
Applications:
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Test Equipment
Fiber optic cross cabinet
ODF
Telecommunication network system
Specification:
| Material | ABS |
| Tensile Strength(N) | 100 |
| Durability(dB) | ≤0.2 |
| Typical Change | 1000 Matings |
| Repeatability(dB) | ≤0.1 |
| Insertion Loss(dB) | ≤0.3 |
| Storage/Operating Temperature | -40°C to + 80°C |
